Product Features
Single Band, 820-960Mhz
Streamlined Design, Elegant Appearance
Low PIM with -107dBc(2*20W)
Pole /Wall Mounted
| Electrical Specifications | ||||||||
| Frequency Range | MHz | 820-960 | 820-960 | |||||
| Gain（typical） | dBi | 14.5±1 | 14.5±1 | |||||
| Polarization | ±45° | |||||||
| Beam width（typical） | H | deg | 16±6 | 16±6 | ||||
| V | 65±6 | 65±6 | ||||||
| VSWR | <1.5 | |||||||
| Front-to-back ratio | dB | ≥25 | ||||||
| Isolation | dB | ≥25 | ||||||
| PIM，3rd Order,2*20W | dBc | <-107dBc | ||||||
| Impedance | Ω | 50 | ||||||
| Input Power per port ,MAX | watts | 100 | ||||||
| Mechanical Specifications | ||||||||
| Dimensions H*W*D | mm | 1300×1300×1500 | ||||||
| Pigtail length | mm | 200 | ||||||
| weight | kg | 25 | ||||||
| Radome Materical and Color | RRP） | |||||||
| Mounting Kit | On Floor | |||||||

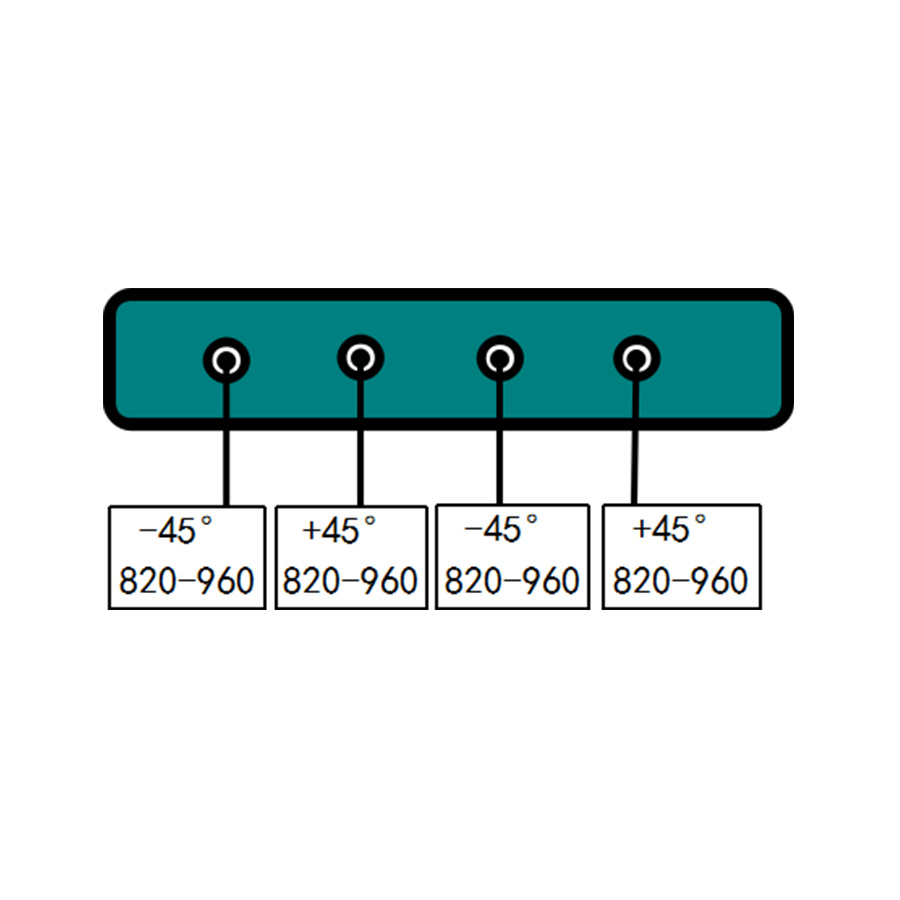

| Connector Type | 4*N-Female | |||||||
| Operational Temperature | ℃ | -55 to +70 | ||||||
| Operational Humidity | % | <95 | ||||||
| AntennaMaterial( Reflector) | Aluminum | |||||||
| Packed Dimensions | mm | / | ||||||
| Directional diagram | ||||||||
| Frequency（Mhz） | 820-960 | 820-960 | ||||||
| Directional |  |  | ||||||
