Features
Band 1710-2690Mhz
Streamlined Design, Elegant Appearance
Low PIM with -150dBc(2*43dBm)

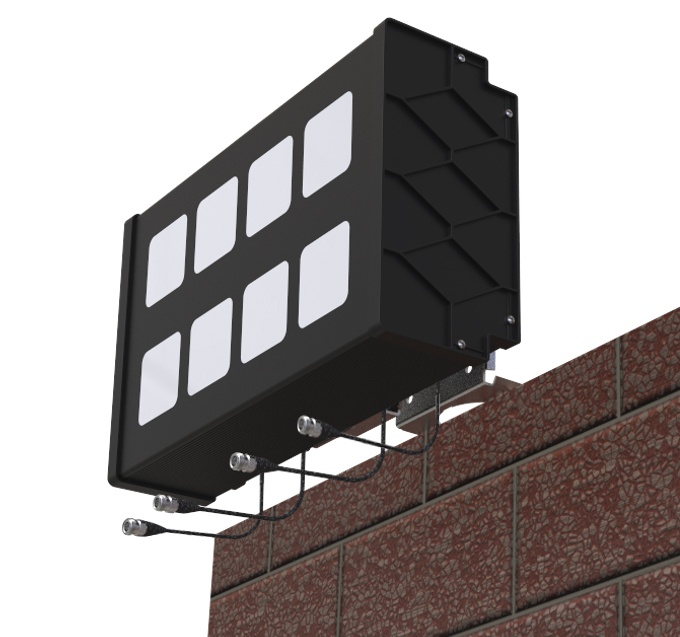

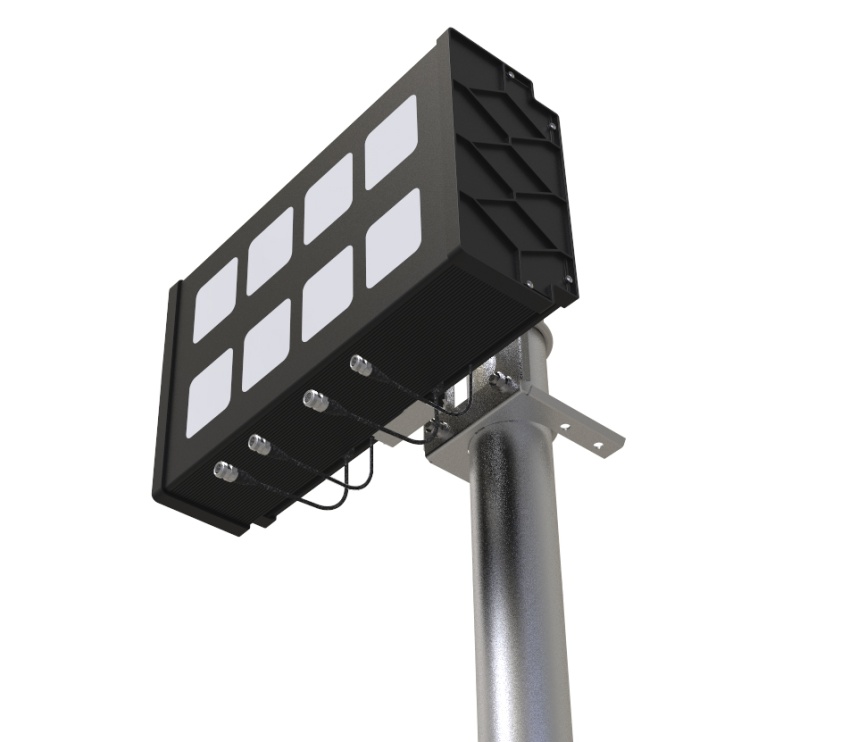

Pole Mounted/Rack Mount
Electrical specifications | |
Frequency Range,MHz | 1710-2690 |
Polarization | ±45° |
Gain (dBi) | 14±1 |
Beam Width,H,deg | 16±5 |
Beam Width,V, deg | ≥55 |
Front-to-Back Ratio,dB | ≥22 |
VSWR | ≤1.5 |
Isolation,dB | ≥25 |
Intermodulation IM3,dBc | ≤-150(2×43dBm) |
Input Power,MAX,Watt | 100W |
Impedance,Ω | 50 |
Mechanical specifications | |
Connector | 4×4.3-10 Female |
Connector location | Bottom |
Lightning protection | DC Ground |
Dimensions L×W×H,mm | 495×296×150 |
Packed Dimensions,mm | 590×410×320 |
Antenna Weight,kg | ≤7 |
Mounting Method | Pole mount/Rack Mount |
Radome Material/Color | UPVC |
Down Tilt Continuous Range(°) | elevation -45~+45 |
Operational Max Wind Speed,km/h | 200 |
Operating Temperature,℃ | -50~+65 |
