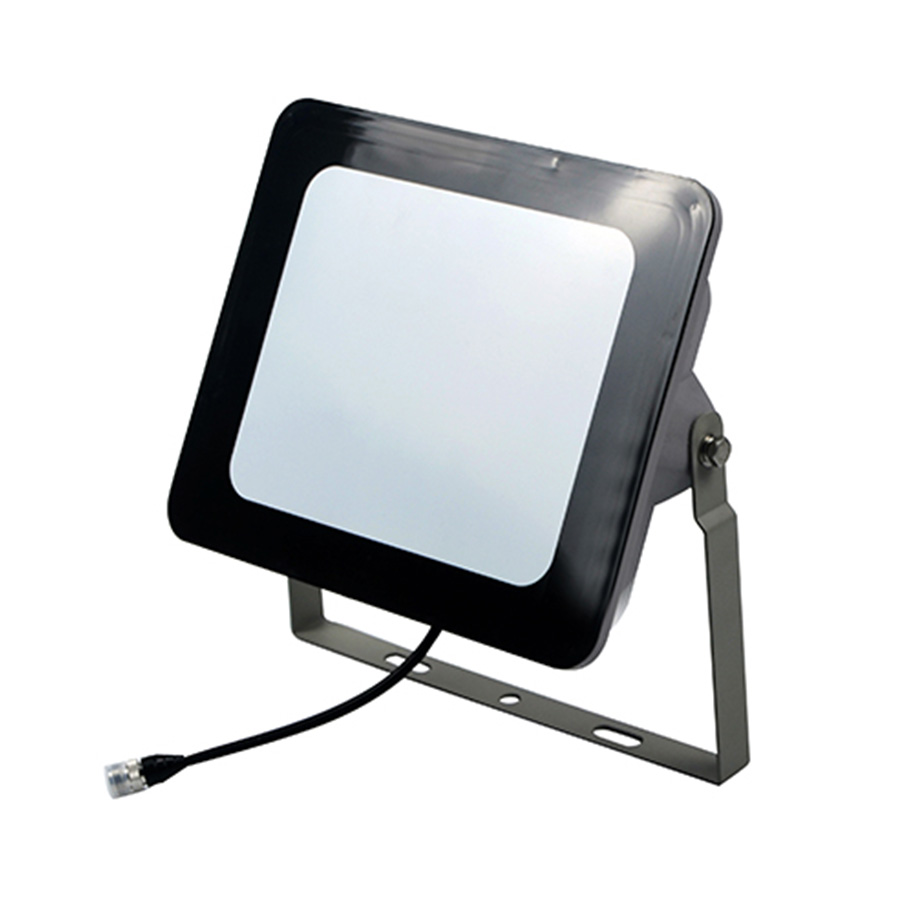

Product Features
Wide Band, 620~2690Mhz
Streamlined Design, Elegant Appearance
Low PIM with -107dBc(2*20W)
Pole /Wall Mounted
| Electrical Specifications | ||||||||
| Frequency Range | MHz | 820-960 | 1710-2690 | |||||
| Gain（typical） | dBi | 6±1 | 8±1 | |||||
| Polarization | V | |||||||
| Beam width（typical） | H | deg | 70±10 | 50±10 | ||||
| V | 75±10 | 65±10 | ||||||
| VSWR | <1.5 | |||||||
| Front-to-back ratio | dB | ≥18 | ||||||
| Isolation | dB | / | ||||||
| PIM，3rd Order,2*20W | dBc | <-107dBc | ||||||
| Impedance | Ω | 50 | ||||||
| Input Power per port ,MAX | watts | 100 | ||||||
| Mechanical Specifications | ||||||||
| Dimensions H*W*D | mm | 280*230*70 | ||||||
| Pigtail length | mm | 200 | ||||||
| weight | kg | 0.77 | ||||||
| Radome Materical and Color | PP ,Grey（Can be specified） | |||||||
| Mounting Kit | On Pole/Wall | |||||||

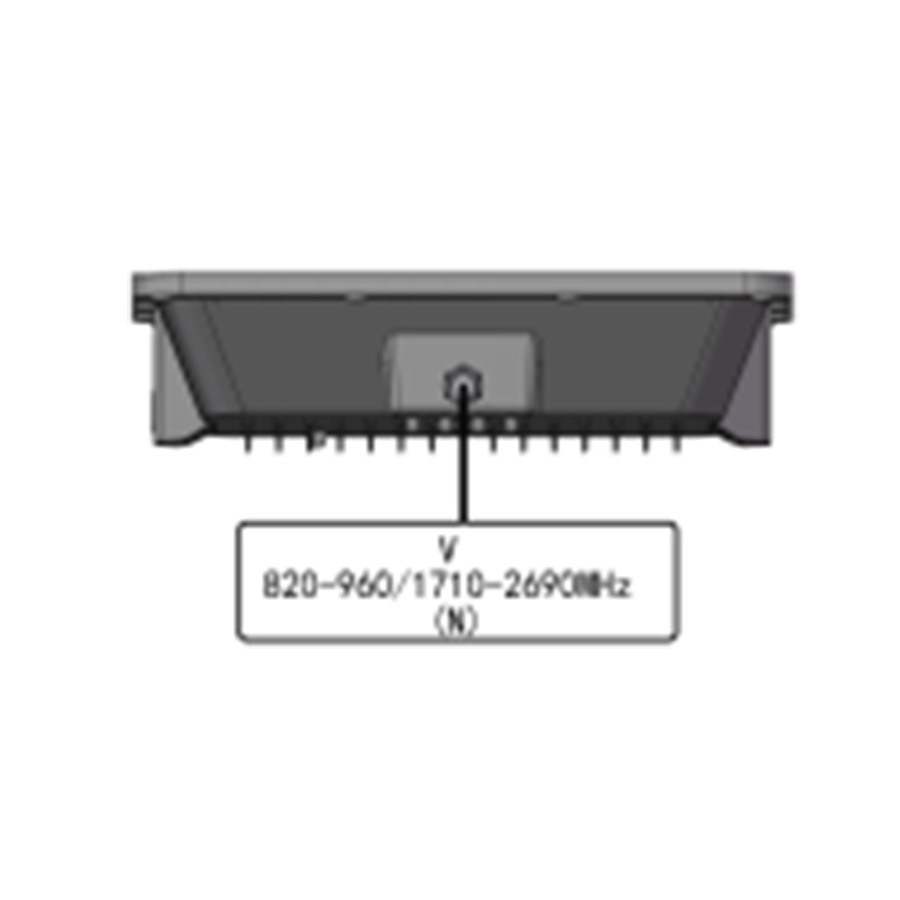

| Connector Type | N-Female | |||||||
| Operational Temperature | ℃ | -55 to +70 | ||||||
| Operational Humidity | % | <95 | ||||||
| AntennaMaterial( Reflector) | Aluminum | |||||||
| Packed Dimensions | mm | 315*245*75 | ||||||
| Directional diagram | ||||||||
| Frequency（Mhz） | 698-960 | 1710-2690 | ||||||
| Directional |  |  | ||||||
