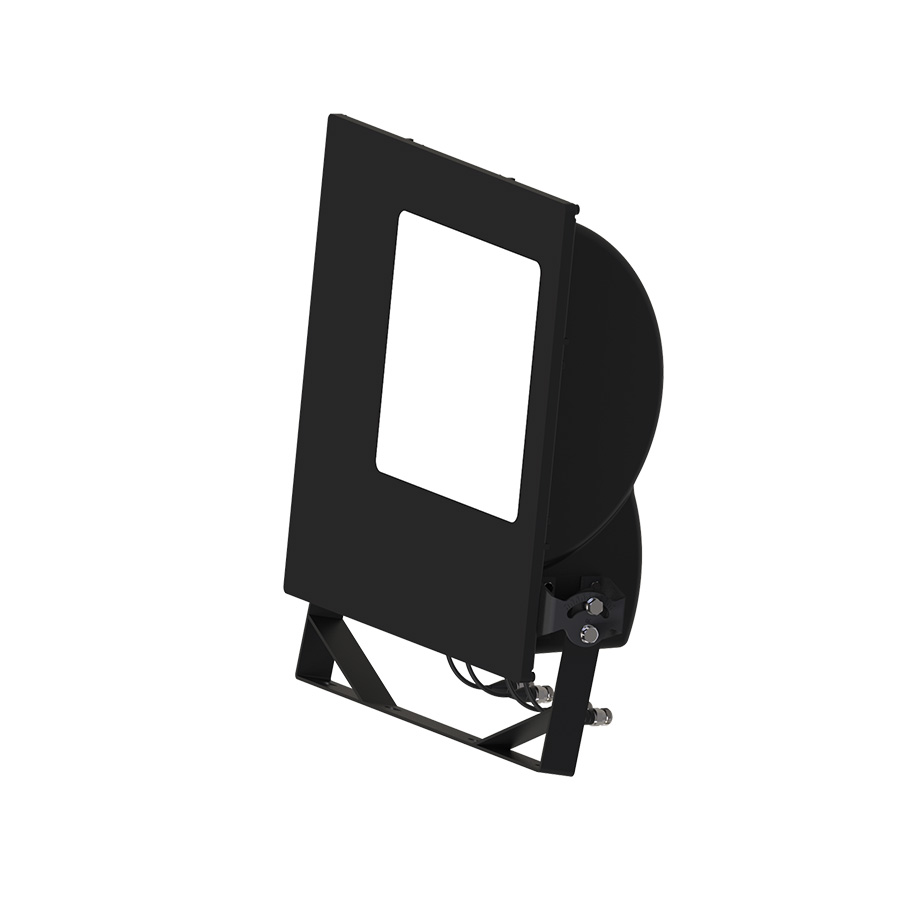

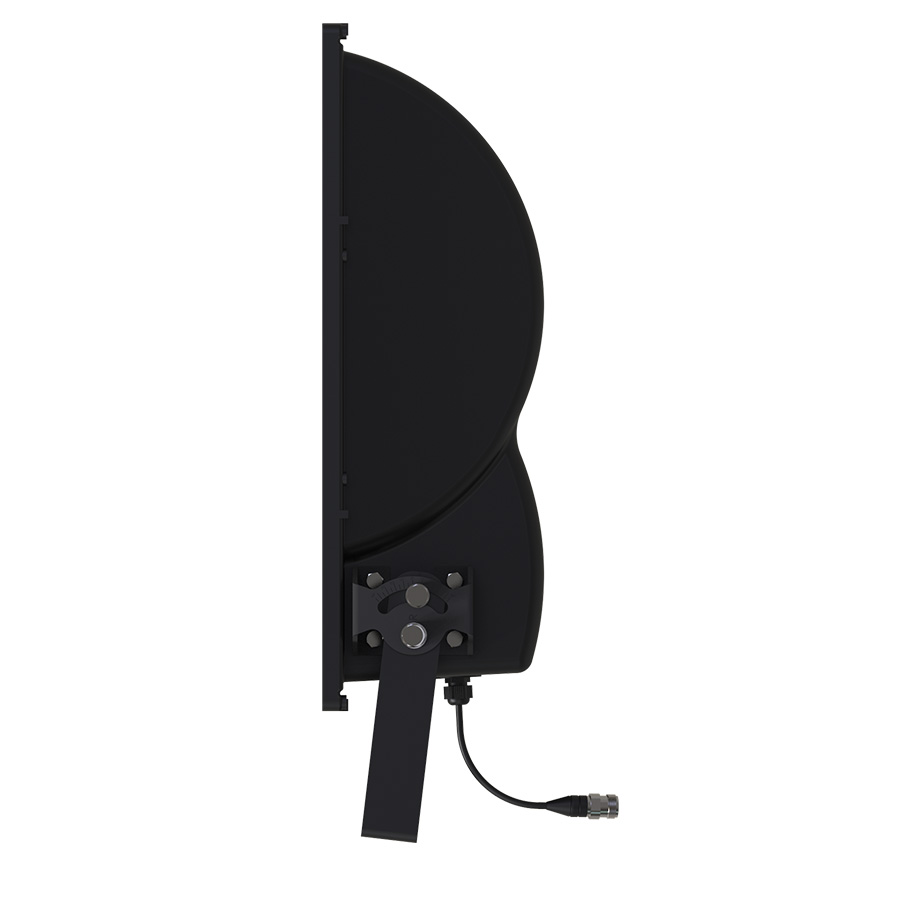

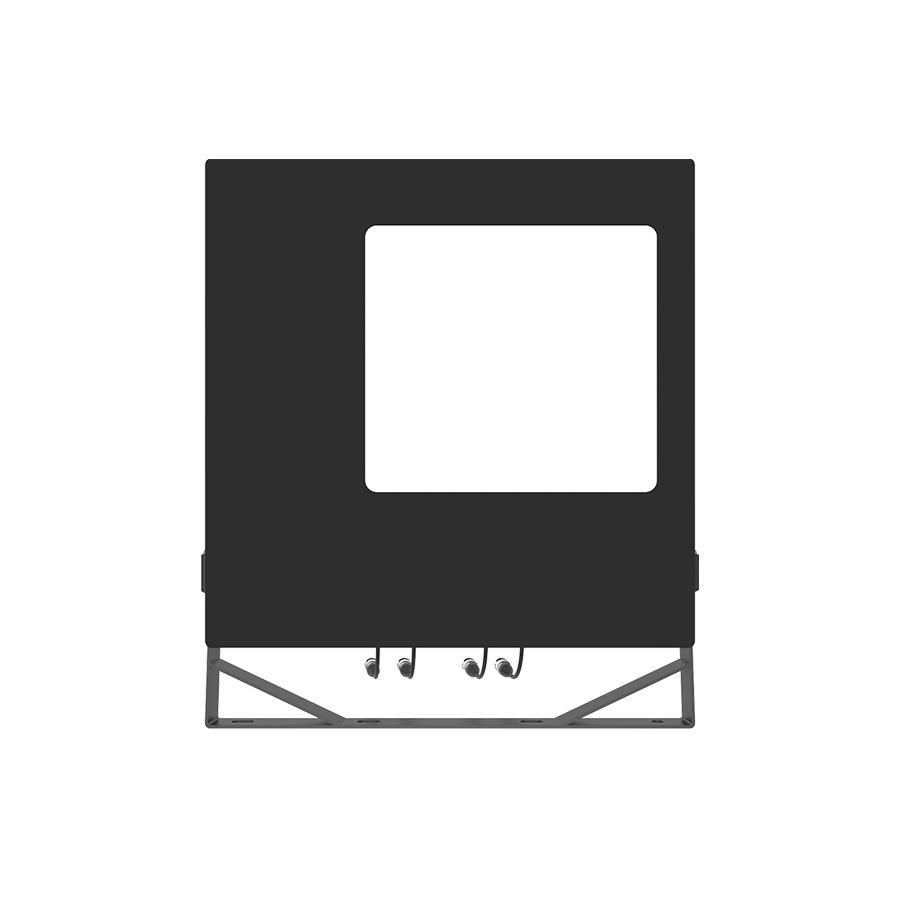

Electrical Specifications | ||
Frequency Range,MHz | 3300-3800 | |
Polarization | ±45° | |
Gain,dBi(Typical) | 13 | |
Beam Width,H,deg | 30±6 | |
Beam Width,V,deg | 30±6 | |
Front-to-Back Ratio,dB | ≥23 | |
VSWR | <1.5 | |
Isolation,dB | ≥25 | |
Impedance,Ω | 50 | |
Input Power,MAX,Watt | 100 | |
Mechanical Specifications | ||
Connector | N or 4.3-10×4 | |
Dimensions L×W×H,mm | 430×430×138 | |
Packed Dimensions,mm | 440×450×154 | |
Weight,kg | 2.9 | |
Packed Weight,kg | 4.1 | |
Mounting Method | Rack Mounting | |
Radome Material/Color | PP Black | |
Operating Temperature,℃ | -50～+65 | |
Relative Humidity | 5%-95% | |
Directional Diagram | ||||

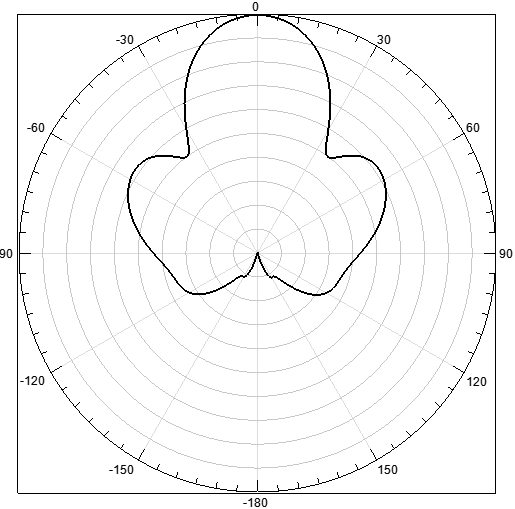

Directional H |
| |||
Directional V |
| |||

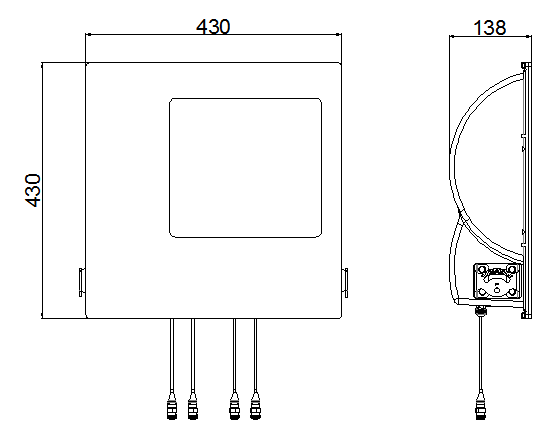

Technical Drawing |
|

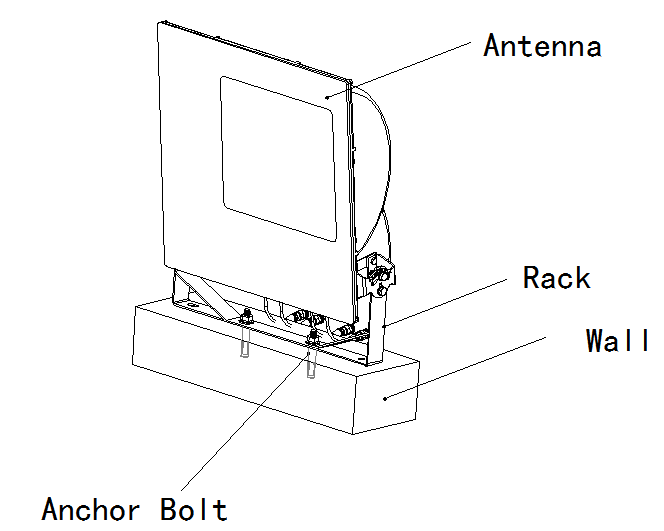

Installation Drawing |
|
