High-rising Building Coverage Antenna

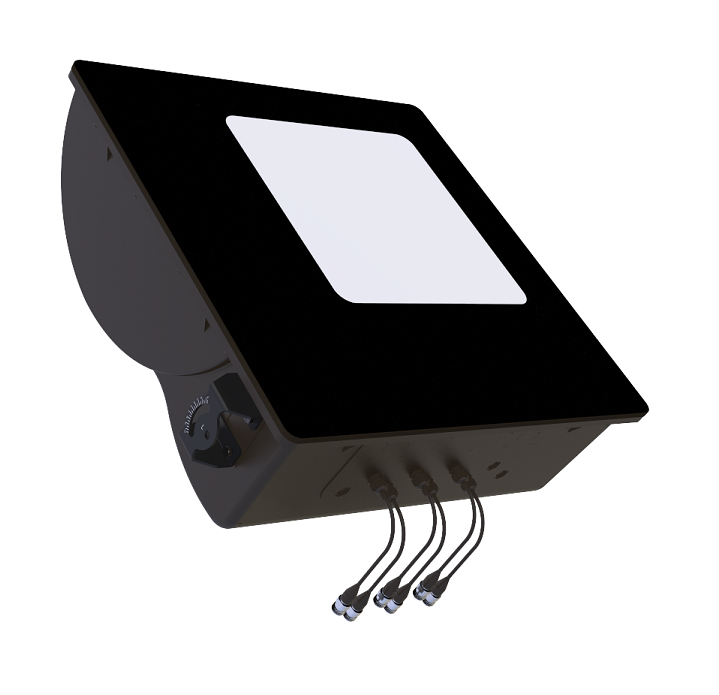

901741002-Multi-band Spotlight Camoufage Antenna

Share

Main Features

Outdoor coverage solution

Rack mounting

High gain

Multi-band

Product Description

Electrical Specifications


Frequency Range,MHz

820-960

1710-2690

3300-3800

Polarization

±45°

Gain,dBi(Typical)

10.5

12.5

13

Beam Width,H,deg

35±5

20±6

20±5

Beam Width,V,deg

65±8

65±8

65±8

USLS(First Lobe) ,dB

15

12

10

Front-to-Back Ratio,dB

≥21

≥23

≥23

VSWR

<1.5

Isolation,dB

≤-25

Intermodulation IM3,dBc

-147 (37dBm)

-147(37dBm)

/

Impedance,Ω

50

InputPower,MAX,Watt

100

100

80

Mechanical Specifications

Connector

N-female ×6

Dimensions L×W×H,mm

540×540×186

Packed Dimensions,mm

600×600×235

Weight,kg

5.1

Packed Weight,kg

6.9

Mounting Method

Rack Mounting

Radome Material/Color

PP Black

Operating Temperature,

-50+65

Relative Humidity

5%-95%

Directional Diagram






Frequency  MHz

880

2170

3500

Directional  H

       901741002-Multi-band Spotlight Camoufage Antenna



901741002-Multi-band Spotlight Camoufage Antenna

901741002-Multi-band Spotlight Camoufage Antenna

Directional  V

901741002-Multi-band Spotlight Camoufage Antenna

901741002-Multi-band Spotlight Camoufage Antenna

901741002-Multi-band Spotlight Camoufage Antenna

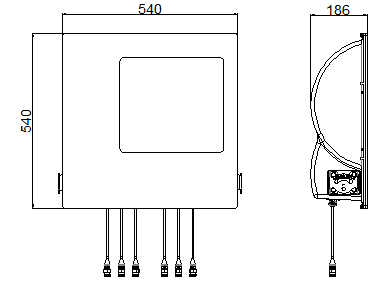

Technical Drawing


901741002-Multi-band Spotlight Camoufage Antenna

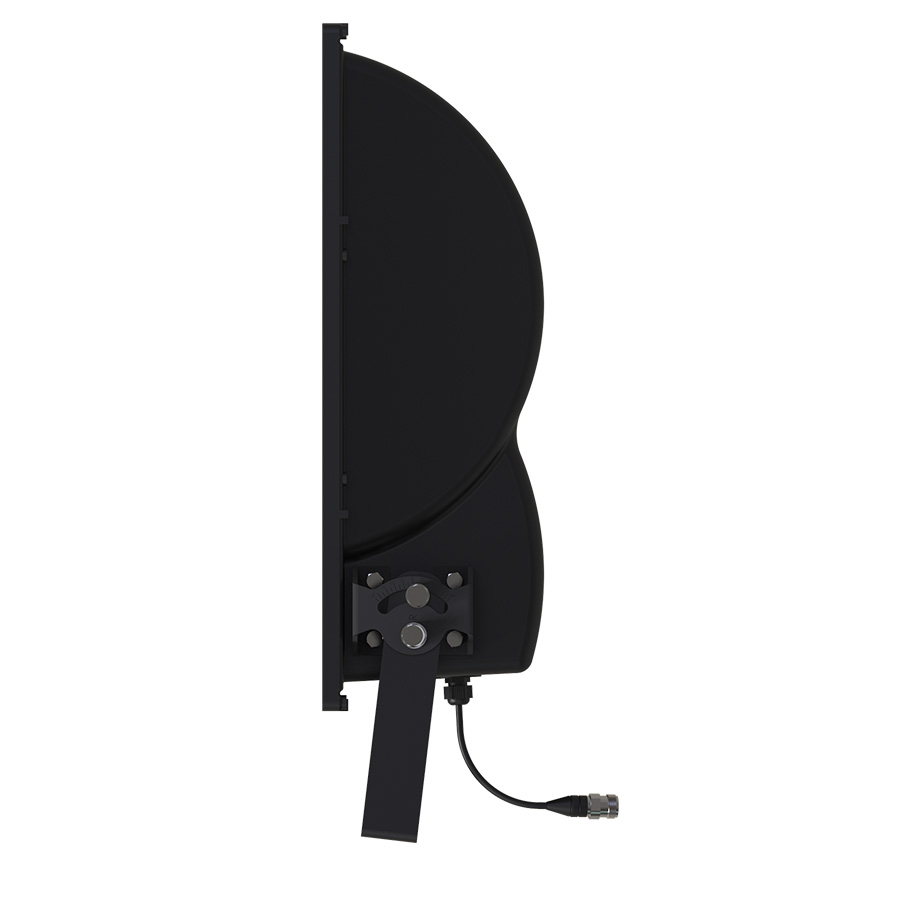

Installation Drawing


901741002-Multi-band Spotlight Camoufage Antenna
