Indoor Coverage Antenna

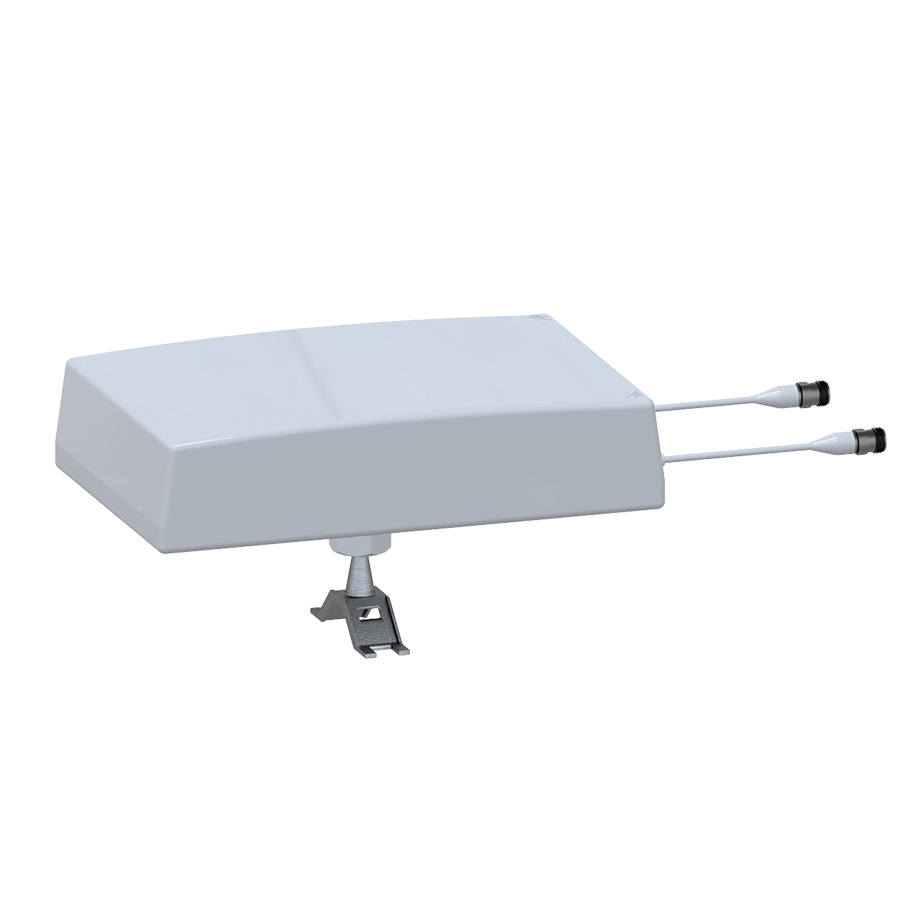

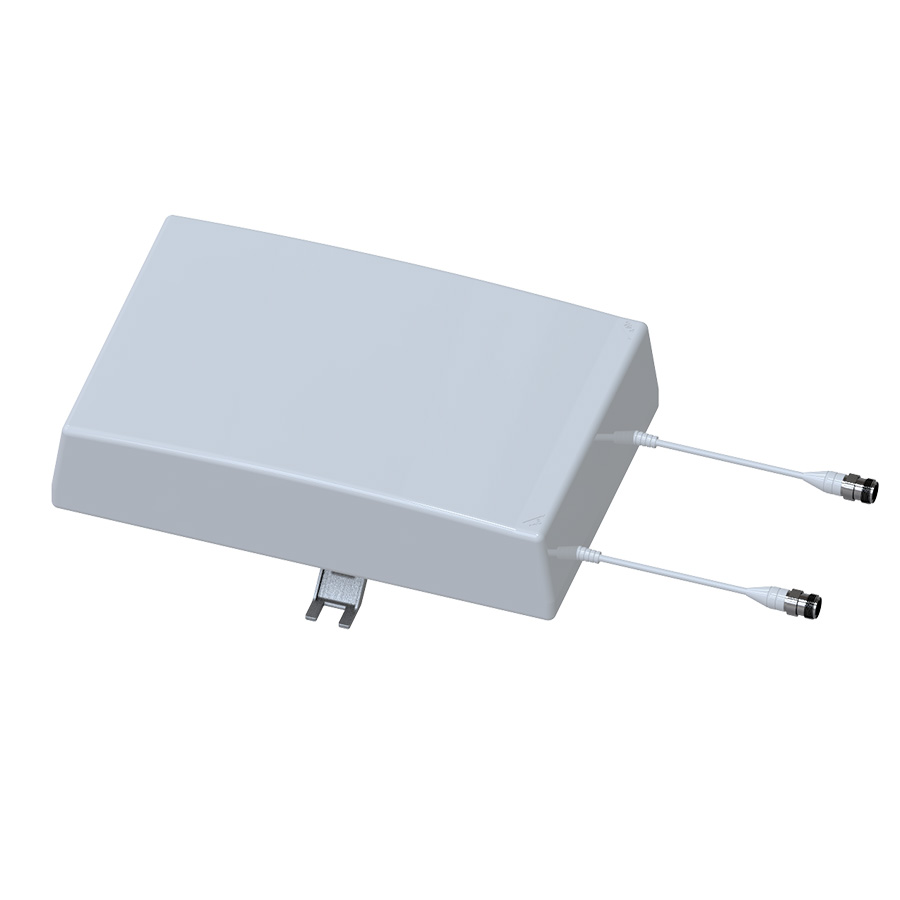

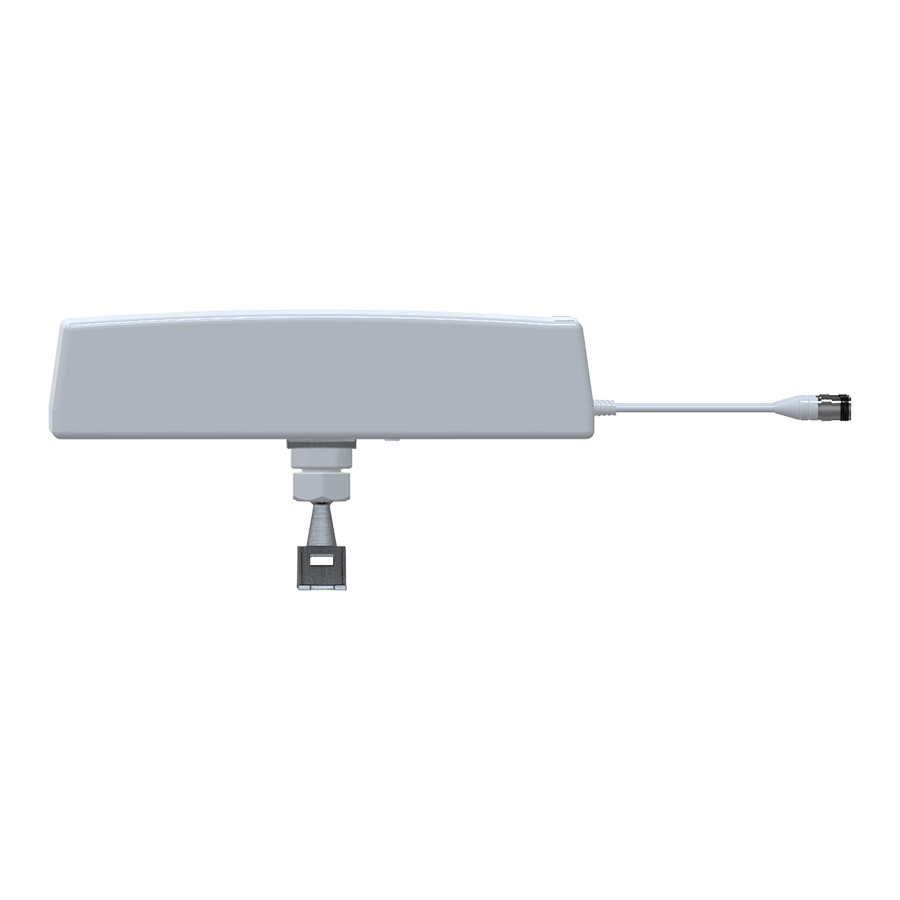

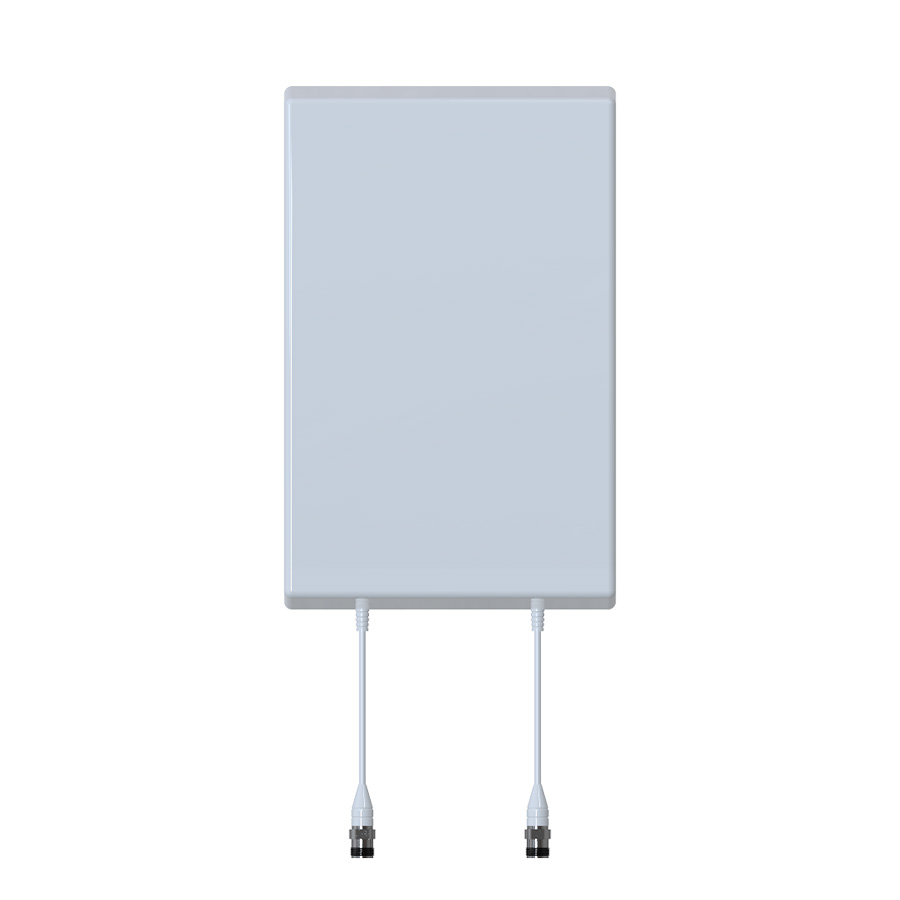

932740201-Indoor Directional Antenna

Share
Main Features
Indoor Coverage Solution
Ideal Direction Adjustments on Wall or Pole Mounting
High Gain,Low PIM
Beautification Design,Elegant Appearance
Product Description
Electrical Specifications
Frequency Range,MHz698-806806-9601710-21702300-26903300-4000
Polarization±45°
Gain,dBi(Typical)5.5677.58
Beam Width,H,deg65±865±861±1055±1045±8
Beam Width,V,deg65±865±861±1055±1045±8
VSWR<1.8
Isolation,dB≥22
Intermodulation IM3,dBc≤-150@2×43dBm
Impedance,Ω50
InputPower,MAX,Watt50
Mechanical Specifications
ConnectorN or 4.3-10 Female×2
Dimensions L×W×H,mm315×200×73
Packed Dimensions,mm430×210×130
Weight,kg0.6
Packed Weight,kg0.8
Mounting MethodWall-mount/Pole-mount
Pigtail Length,mm300
Radome Material/ColorABS,RAL-9003(Milky White)
Reflector MaterialAluminum
Operating Temperature,-50~+65
Relative Humidity5%-95%
Directional Diagram
Frequency  MHz698-9601710-26903300-4000
Directional  Himage.png image.png image.png
Directional  Vimage.png image.pngimage.png

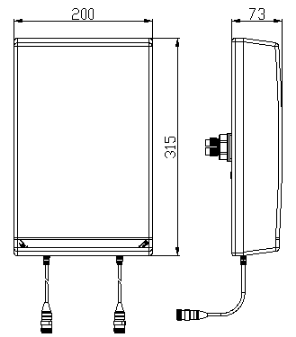

Technical Drawing

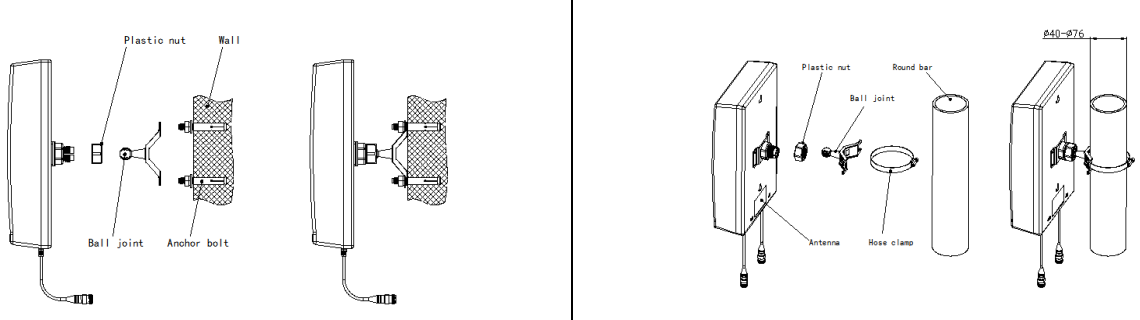

Installation Drawing
