| Main Features |
| Indoor Coverage Solution |
| Ceiling Mounting Installation |
| High Gain,Low PIM |
| Beautification Design,Elegant Appearance |
| Electrical Specifications | ||||||||||
| Frequency Range,MHz | 698-806 | 806-960 | 1427-2170 | 2300-2690 | 3300-4000 | |||||
| Polarization | V | |||||||||
| Gain,dBi(Typical) | 2 | 2.5 | 3 | 3.5 | 4.5 | |||||
| Beam Width,H,deg | 360 | 360 | 360 | 360 | 360 | |||||
| VSWR | <1.8 | |||||||||
| Intermodulation IM3,dBc | ≤-150@2×43dBm | |||||||||
| Impedance,Ω | 50 | |||||||||
| InputPower,MAX,Watt | 50 | |||||||||
| Mechanical Specifications | |
| Connector | N or 4.3-10 Female |
| Dimensions L×W×H,mm | Φ187×81 |
| Packed Dimensions,mm | 180×180×180 |
| Weight,kg | 0.4 |
| Packed Weight,kg | 0.6 |
| Mounting Method | Ceiling-mount |
| Pigtail Length,mm | 300 |
| Radome Material/Color | ABS,RAL-9003(Milky White) |
| Reflector Material | Aluminum |
| Operating Temperature,℃ | -50～+65 |
| Relative Humidity | 5%-95% |
| Directional Diagram | ||||||
| Frequency MHz | 698-960 | 1427-2690 | 3300-4000 | |||
| Directional H |  |  |  | |||
| Directional V |  |  |  | |||

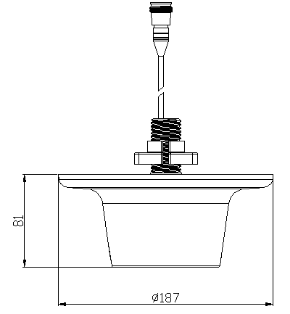

| Technical Drawing |
 |

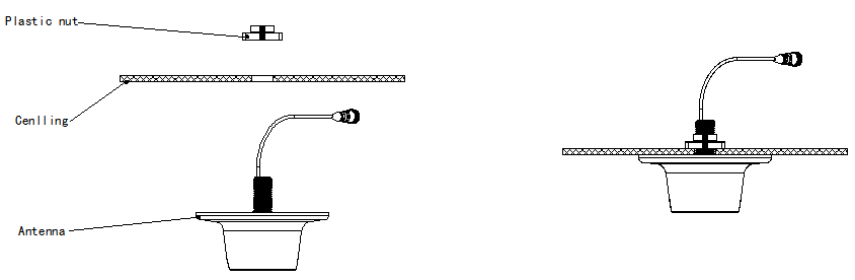

| Installation Drawing |
 |
