Indoor Coverage Antenna

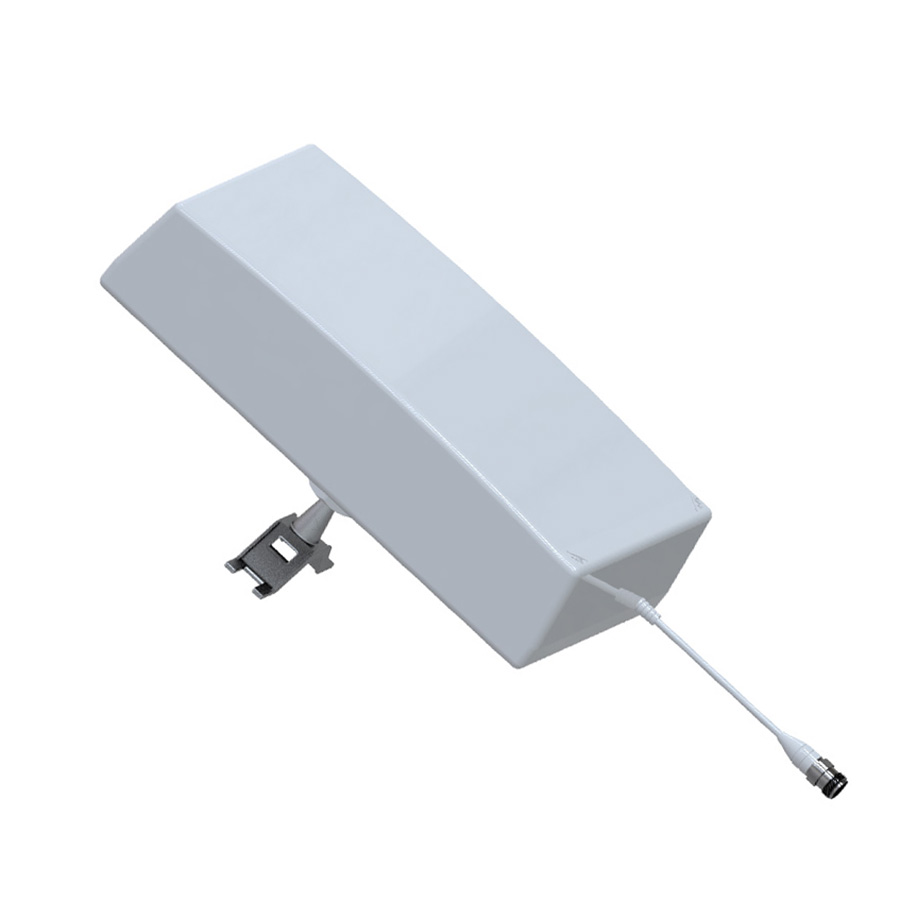

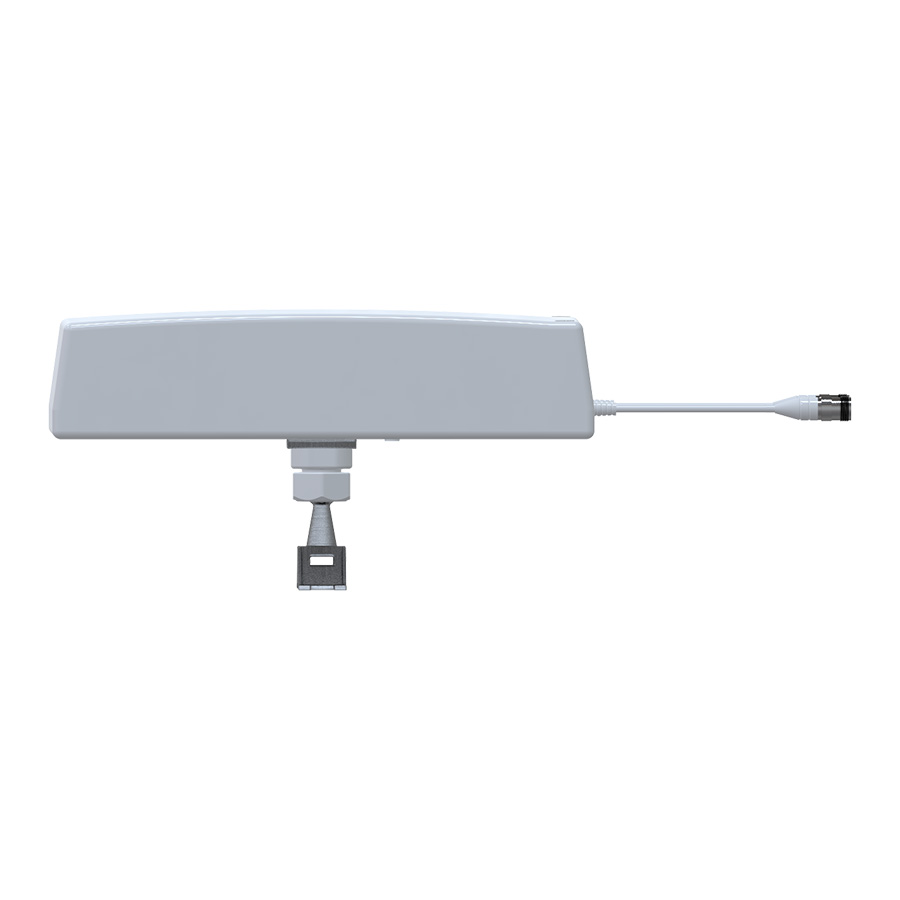

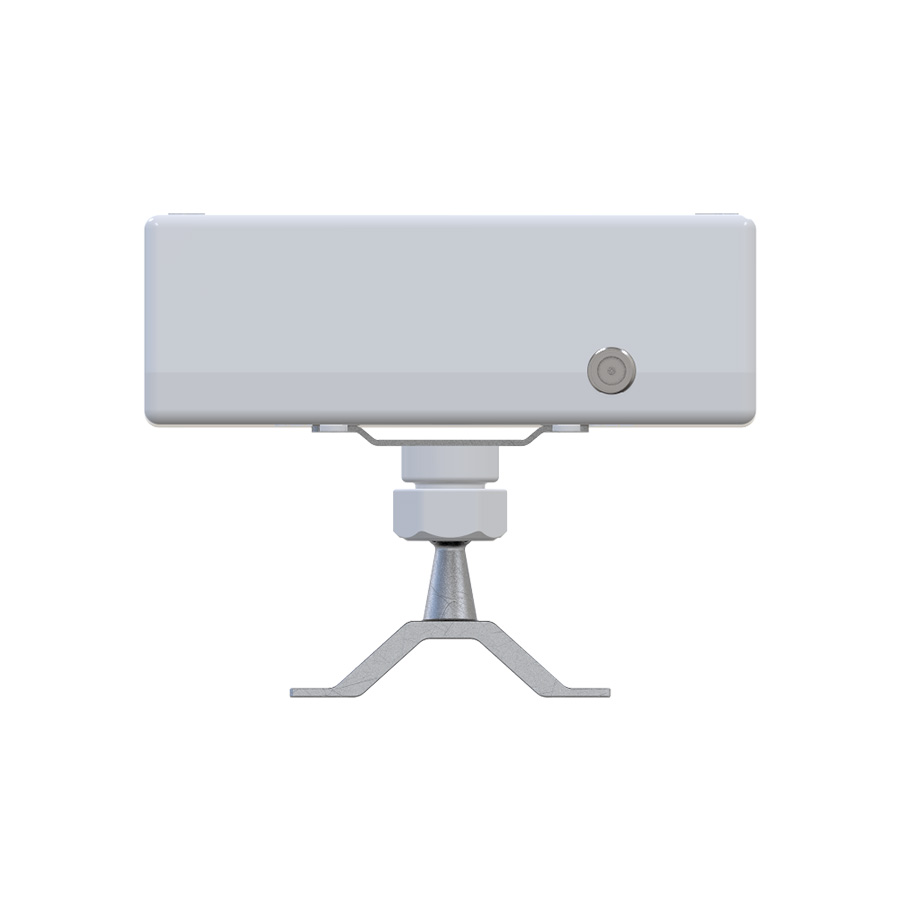

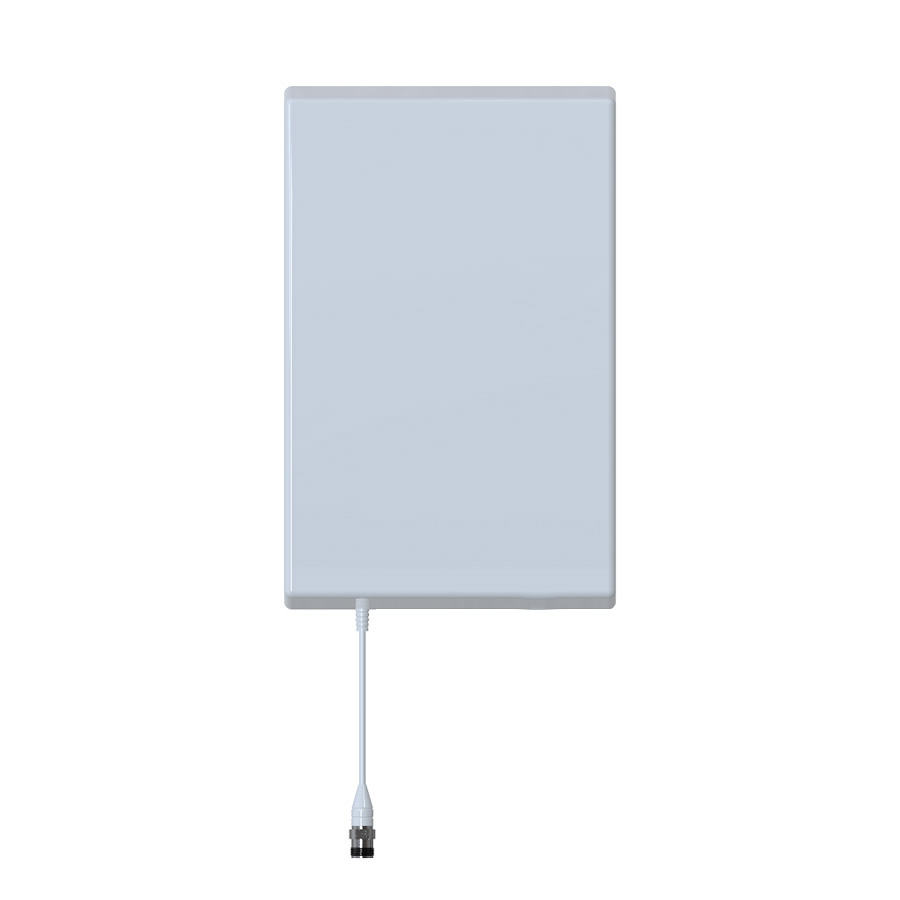

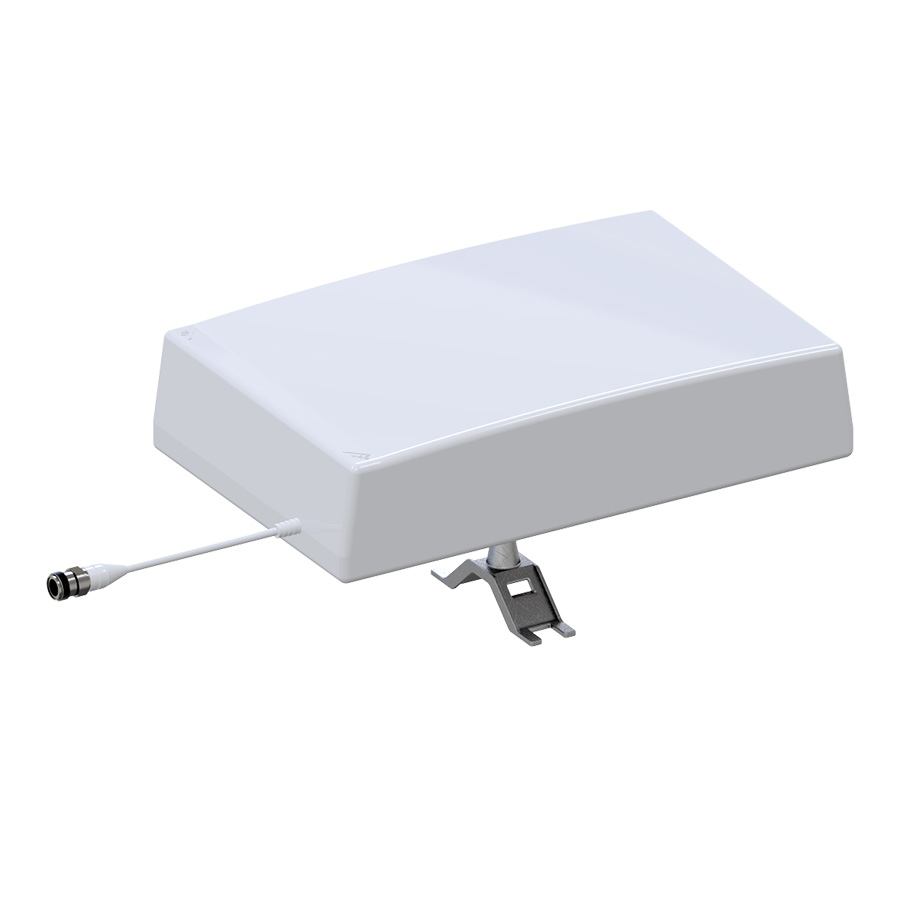

932740102-Indoor Directional Antenna

Share
Main Features
Indoor Coverage Solution
Ideal Direction Adjustments on Wall or Pole   Mounting
High Gain,Low PIM
Beautification Design,Elegant Appearance
Product Description
Electrical Specifications
Frequency   Range,MHz698-806806-9601710-21702300-26903300-4000
PolarizationV
Gain,dBi(Typical)5.5677.58
Beam   Width,H,deg65±1065±1061±1055±1045±10
Beam   Width,V,deg65±1065±1061±1055±1045±10
VSWR<1.8
Intermodulation   IM3,dBc≤-150@2×43dBm
Impedance,Ω50
InputPower,MAX,Watt50
Mechanical Specifications
ConnectorN or 4.3-10 Female
Dimensions   L×W×H,mm315×200×73
Packed   Dimensions,mm430×210×130
Weight,kg0.6
Packed   Weight,kg0.8
Mounting   MethodWall-mount/Pole-mount
Pigtail   Length,mm300
Radome   Material/ColorABS,RAL-9003(Milky   White)
Reflector   MaterialAluminum
Operating   Temperature,-50~+65
Relative   Humidity5%-95%
Directional   Diagram
Frequency    MHz698-9601710-26903300-4000
Directional    Himage.pngimage.pngimage.png
Directional    Vimage.pngimage.pngimage.png
Technical Drawing

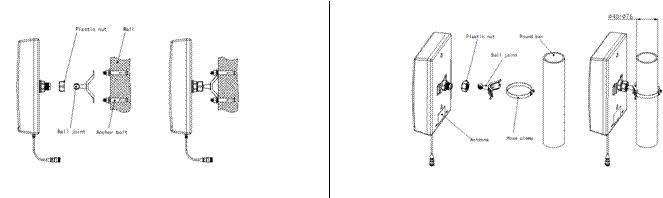

Installation   Drawing
