Product Features
Wide Band, 696~4000Mhz

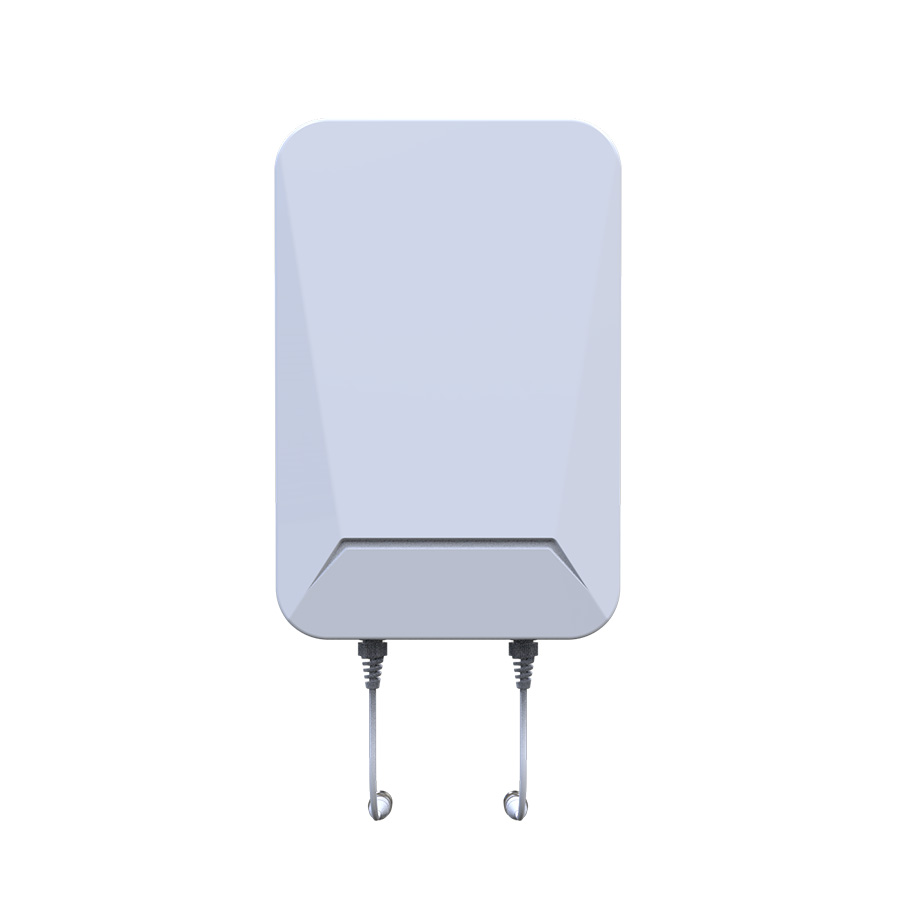

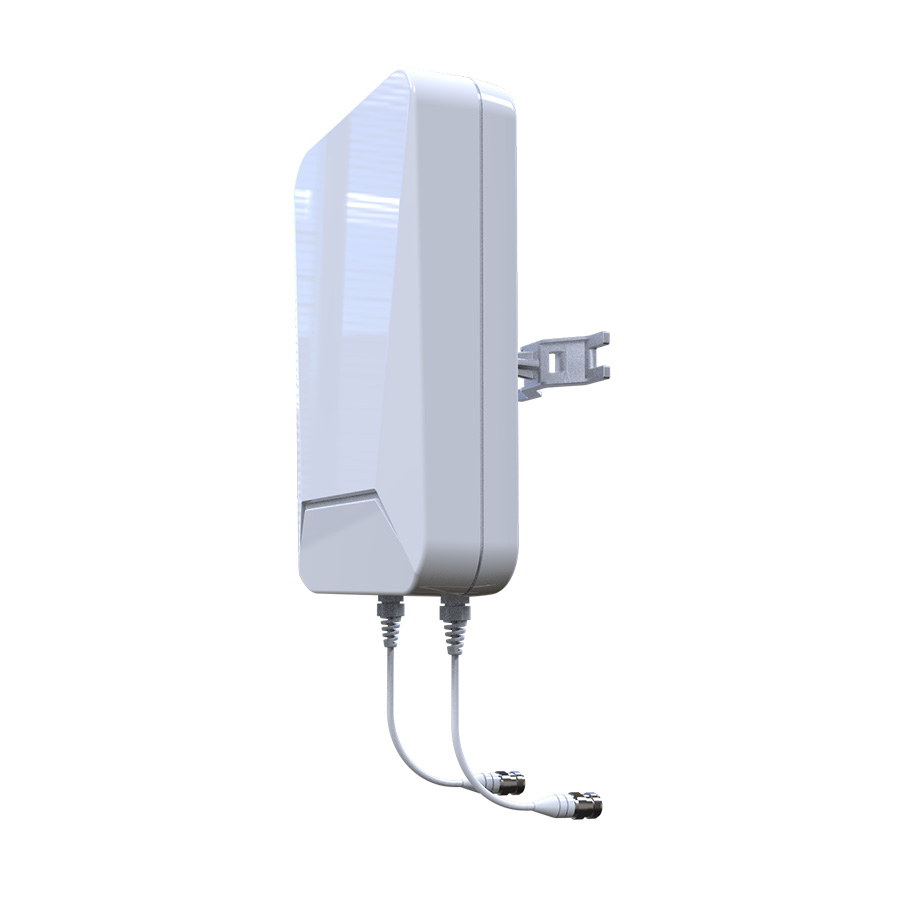

Streamlined Design, Elegant Appearance
Ultra-Low PIM with -153dBc(2*20W)
Easy to Install, Wall Mounting
| Electrical Specifications | ||||||||
| Frequency Range | MHz | 696-960 | 1710-2700 | 3300-4000 | ||||
| Gain（typical） | dBi | 7.5 | 8 | 8.5 | ||||
| Polarization | ±45 | |||||||
| Beam width（typical） | H | deg | 70 | 70 | 60 | |||
| V | 70 | 70 | 60 | |||||
| VSWR | <1.8 | |||||||
| Isolation | dB | <-22 | <-23 | <-23 | ||||
| PIM, 3rd Order, 2*20W | dBc | <-153dBc | ||||||
| Input Power per port, MAX | watts | 50 | ||||||
| Mechanical Specifications | ||||||||

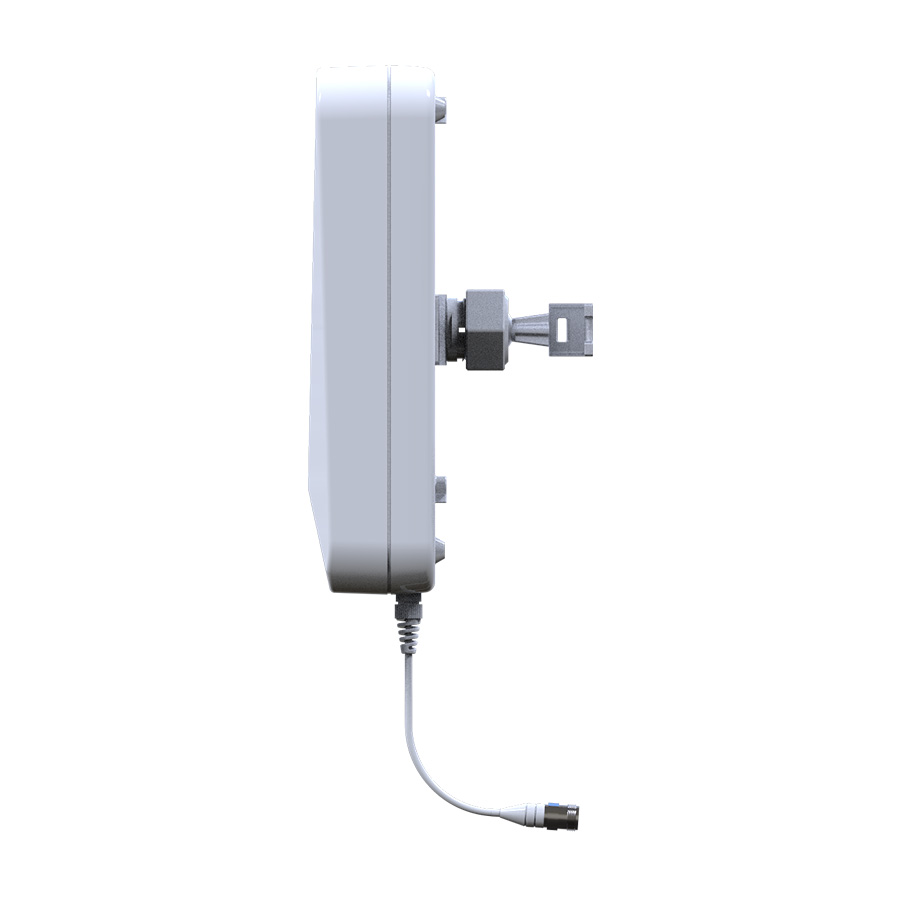

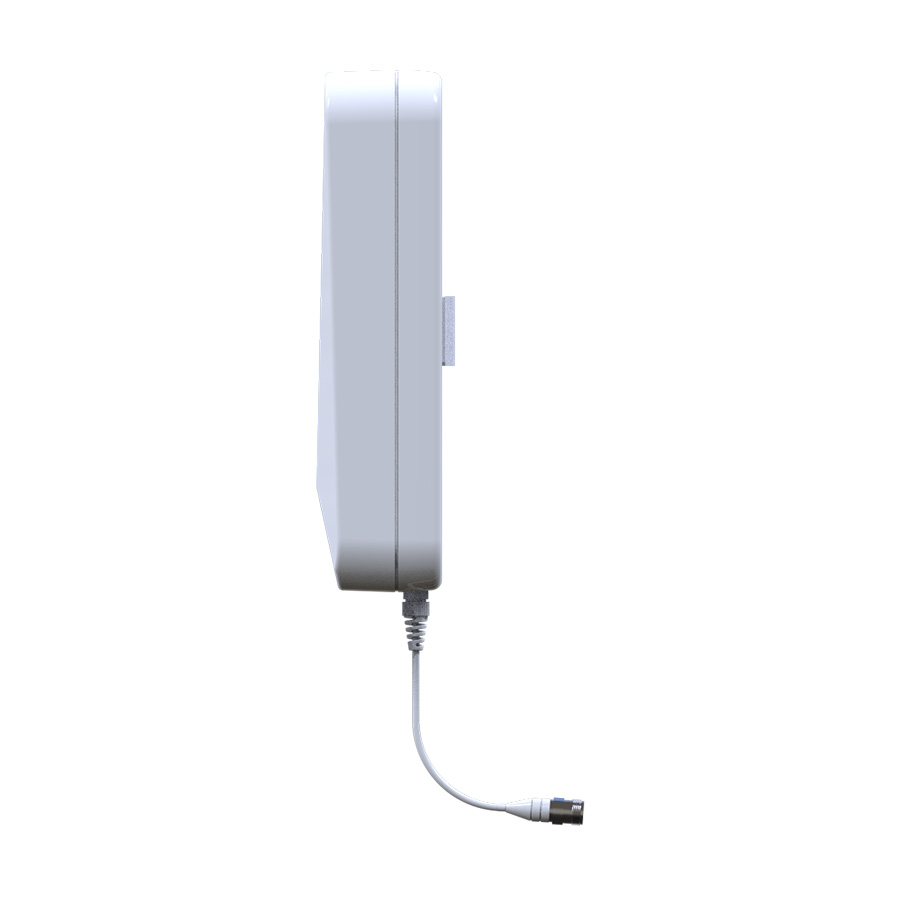

| Dimensions H*W*D | mm | 300*200*（Min.60, Max.72) | ||||||
| Pigtail length | mm | 310 | ||||||
| Packing weight | kg | 1.52 | ||||||
| Weight | kg | 0.91/0.81（with mounting kits/Net Weight) | ||||||
| Radome Materical and Color | ABS, White, RAL9003 | |||||||

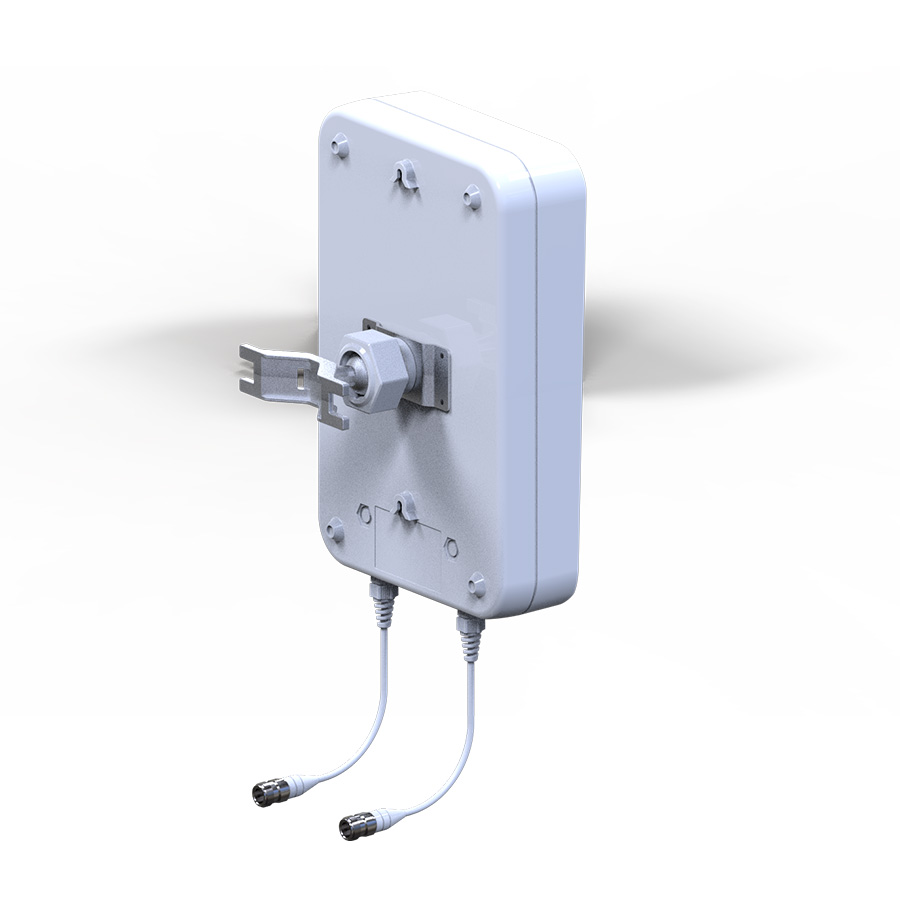

| Mounting Kit | On wall | |||||||
| Connector Type | N-Female*2 | |||||||
| Operational Temperature | ℃ | -55 to +70 | ||||||
| Operational Humidity | % | <95 | ||||||
| Antenna Material( Reflector) | Aluminum | |||||||
| Packed Dimensions | mm | 400*250*160 | ||||||
| Directional diagram | ||||||||
| Frequency（Mhz） | 780(1 port) | 1800(1 port) | 3800(1 port) | 780(2 port) | 1800(2 port) | 3800(2 port) | ||
| Directional H |  |  |  |  |  |  | ||
| Directional V |  |  |  |  |  |  | ||
