| Electrical Specifications |
| Band Frequency Range (MHz) | 1710-2690(Y1,Y2,Y3,Y4) |
| 1710-1990 | 1920-2170 | 2300-2400 | 2490-2690 |
| Polarization | ±45 |
| Gain (dBi) | 16.0±0.5 | 16.5±0.5 | 17.0±0.5 | 17.5±0.5 |
| Horizontal Beam width (3dB) (°) | 70±5 | 67±5 | 62±5 | 60±5 |
| Vertical Beam width (3dB) (°) | 8.0±0.5 | 7.2±0.5 | 6.2±0.5 | 5.6±0.5 |
| Front to Back Ratio at 180±30°(dB) | ≥25 | ≥25 | ≥25 | ≥25 |
| Cross Polar Ratio (dB) | 0° | ≥15 | ≥15 | ≥15 | ≥15 |
| ±60° | ≥10 | ≥10 | ≥10 | ≥8 |
| 1st Upper Sidelobe Suppression(dB) | ≥16 | ≥16 | ≥16 | ≥16 |
| Electrical Downtilt (°) | 2-12 |
| VSWR | ≤1.5 |
| Interband Isolation (dB) | ≥28 |
| Cross-polar Isolation (dB) | ≥28 |
| PIM3 (2x43 dBm carrier) (dBc) | ≤-153 |
| Impedance (Ω) | 50 |
| Max Power Per Port（W） | 200 |
|
| Mechanical Specifications |

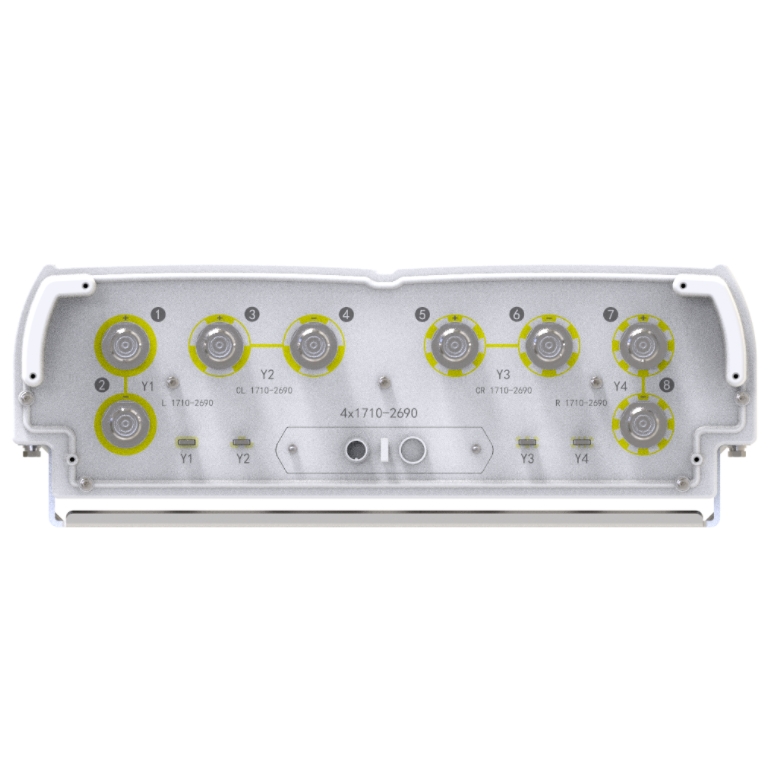

| Connector Type | 8 x 4.3-10 Female |
| Antenna Size (mm) | 1305 x 470 x 150 |
| Packing Size (mm) | 1500 × 515 ×255 |
| Antenna Weight (kg) | 23.5 |
| Packing Weight (kg) | 37 |
| Connector Location | Bottom |

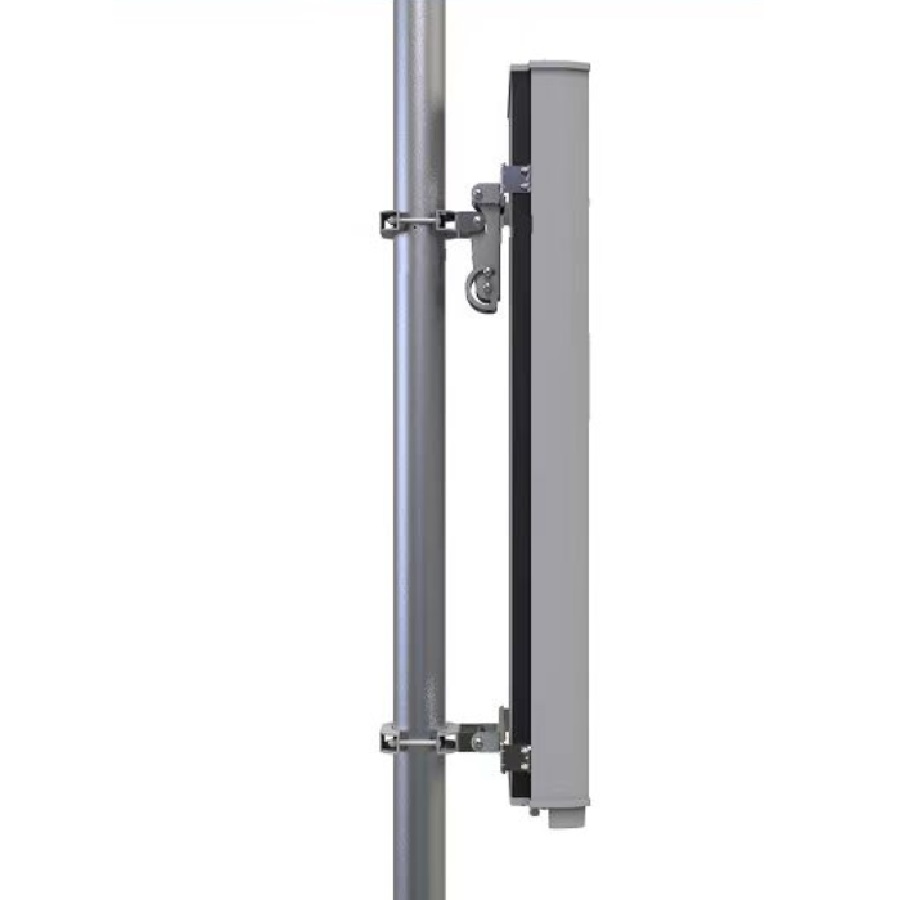

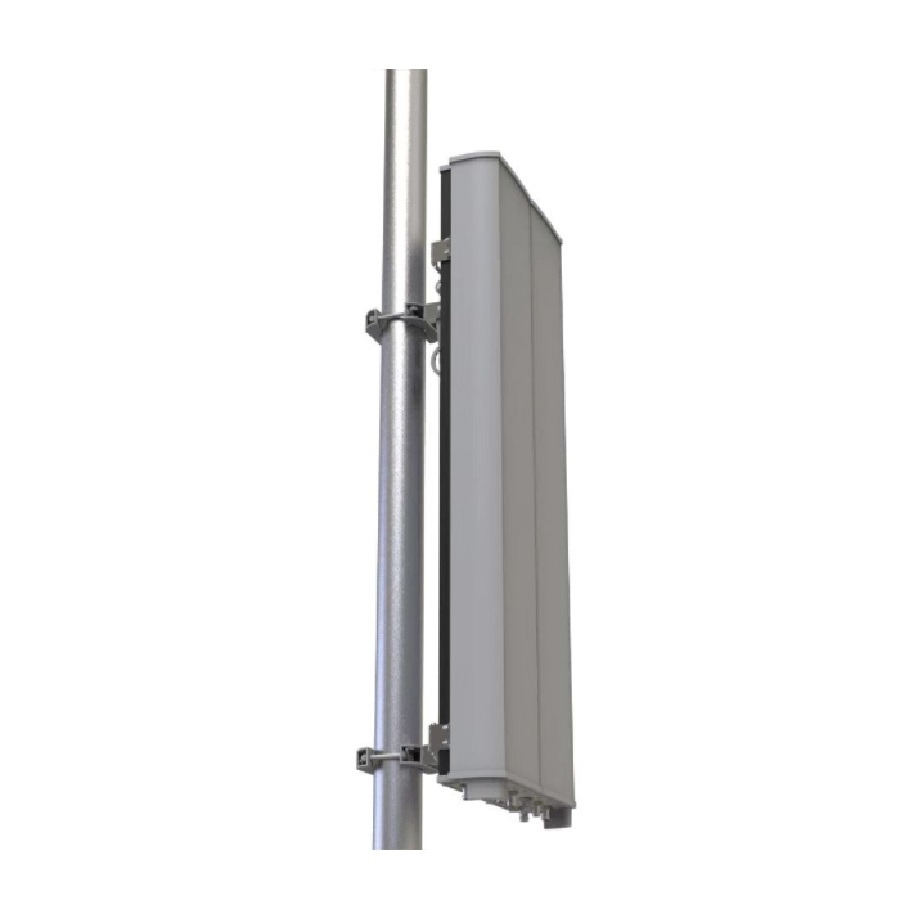

| Mounting Method | Pole-mount |
| Radome Material | Fiberglass |
| Operating Temperature,℃ | -40 ~ +65 |
| Max Wind Speed(km/h) | 241 |
|
| Integrated RET Specifications |
| Protocol Supported | AISG 2.0/3GPP |
| Power Supply | 10-30 Vdc |
| Power Consumption | ≤2W (Idle), ≤10W (in Motion) |
| Protocol Supported | AISG V2.0 |
| Connectors | 2 Circle Connector According To IEC 60130-9 And AISG. Daisy Chain In : Male, Daisy Chain Out : Female |
