| Electrical Specifications |
| Band Frequency Range (MHz) | R1 (450-470) |
| Polarization | ±45 |
| Gain (dBi) | 15 ± 0.5 |
| Horizontal Beam (3dB) | 67 ± 5 |
| Vertical Beam (3dB) | 14 ± 1.5 |
| Front-to-Back Ratio (dB) | ≥25 |
| Cross-Polar Discrimination，0°(dB) | ≥15 |
| 1st Upper Sidelobe Suppression (dB) | ≥16 |
| Electrical Downtilt (°) | 4 |
| VSWR | <1.5 |
| Isolation (dB) | ≥25 |
| PIM3 (2x43 dBm carrier) (dBc) | ≤-150 |
| Impedance (Ω) | 50 |
| Maximum Power (W) | 300 |
| Grounding | DC Ground |
|
| Mechanical Specifications |

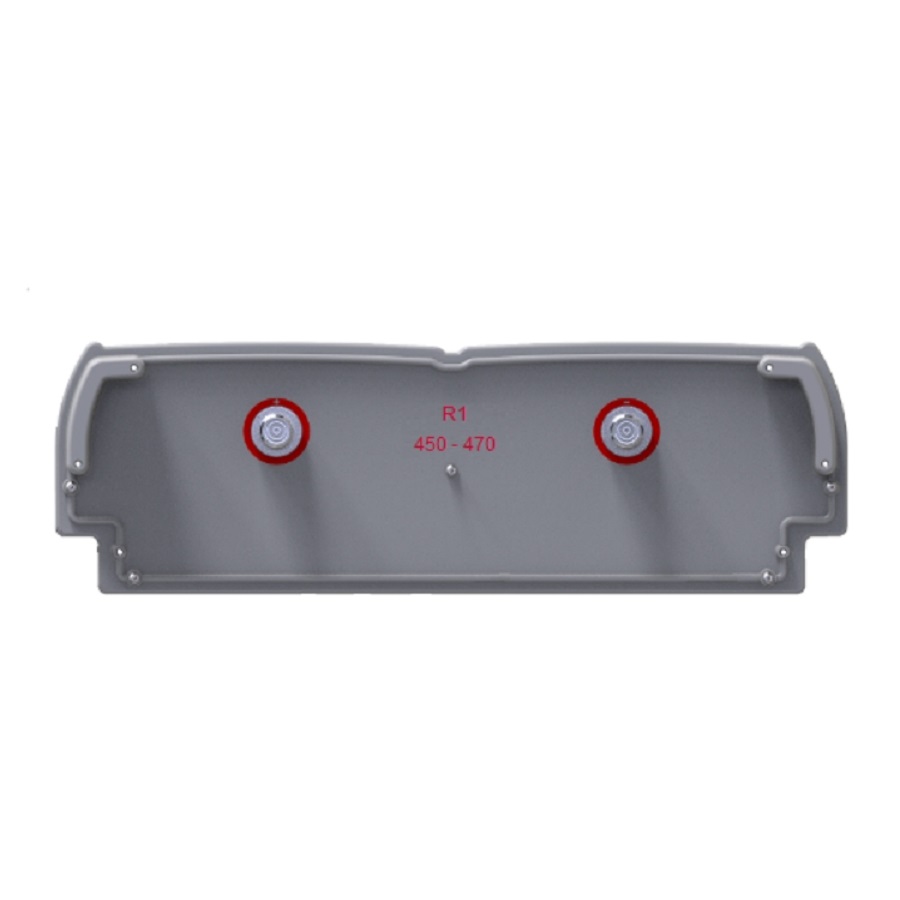

| Connector Type | 2 x 4.3-10 Female |
| Connector Position | Bottom |
| Dimensions, H×W×D (mm) | 2290×470×145 |
| Packing Size, H×W×D (mm) | 2500×535×245 |
| Antenna Weight (kg) | ≤28 |
| Bracket Weight (kg) | 5.25 |
| Packing Weight (kg) | ≤41 |

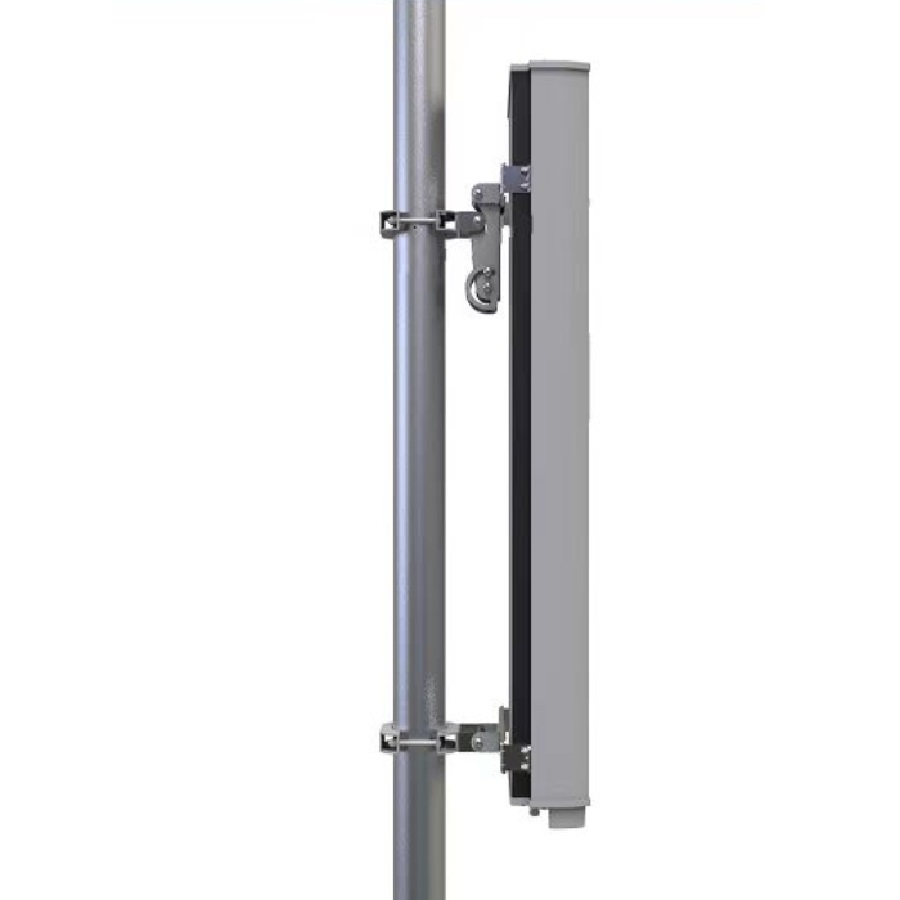

| Mounting Method | Pole-mount |
| Mechanical Downtilt (°) | 0 - 10 |
| Pole Diameter (mm) | 50 - 115 |
| Radome Material | FRP |
| Operating Temperature,℃ | -55～+65 |
| Max Wind Speed(km/h) | 250 |
