| Main Features |
| Indoor or Outdoor Coverage Solution |
| Pole Mounting |
| High Gain |
| Elegant Appearance |
| Electrical Specifications | ||||||||||
| Frequency Range,MHz | 617-806 | 806-960 | 1710-2170 | 2300-2690 | 3300-4200 | |||||
| Polarization | ±45° | |||||||||
| Gain,dBi(Typical) | 6.5 | 7 | 7.5 | 8.5 | 8 | |||||
| Front-to-back Ratio,dB | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |||||
| VSWR | <1.8 | |||||||||
| Isolation,dB | ≥20 | |||||||||
| Impedance,Ω | 50 | |||||||||
| InputPower,MAX,Watt | 50 | |||||||||
| Mechanical Specifications | |
| Connector | 4.3-10 Female×2 |
| Dimensions L×W×H,mm | 450×215×215 |
| Packed Dimensions,mm | 500×290×290 |
| Weight,kg | 2.5 |
| Packed Weight,kg | 4 |
| Mounting Method | Pole-mount |
| Pigtail Length,mm | 300 |
| Radome Material/Color | ABS,RAL-9003(Milky White) |
| Operating Temperature,℃ | -50～+65 |
| Relative Humidity | 5%-95% |
| Directional Diagram | ||||||
| Frequency MHz | 617-960 | 1710-2690 | 3300-4000 | |||
| Directional H |  |  | | |||
| Directional V |  |  | | |||

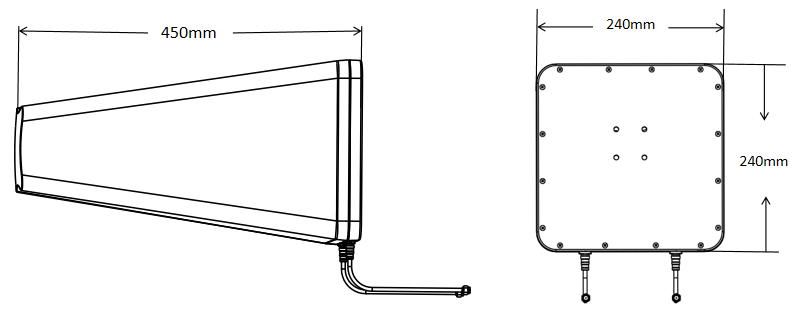

| Technical Drawing |
 |
