| Electrical Specifications |
| Band Frequency Range (MHz) | P1/P2(3300-3800) |
| Polarization | ±45 |
| Gain (dBi) | 17.5±1 |
| Horizontal Beam (3dB) | 23±4 |
| Vertical Beam (3dB) | 12±3 |
| Front-to-Back Ratio (dB) | ≥25 |
| Cross-Polar Discrimination (dB) | ≥15 |
| 1st Upper Sidelobe Suppression (dB) | ≤-15 |
| VSWR | <1.5 |
| Isolation (dB) | ≥28 |
| PIM3 (2x43 dBm carrier) (dBc) | ≤-150 |
| Impedance (Ω) | 50 |
| Maximum Power per port (W) | 100 |
|
| Mechanical Specifications |

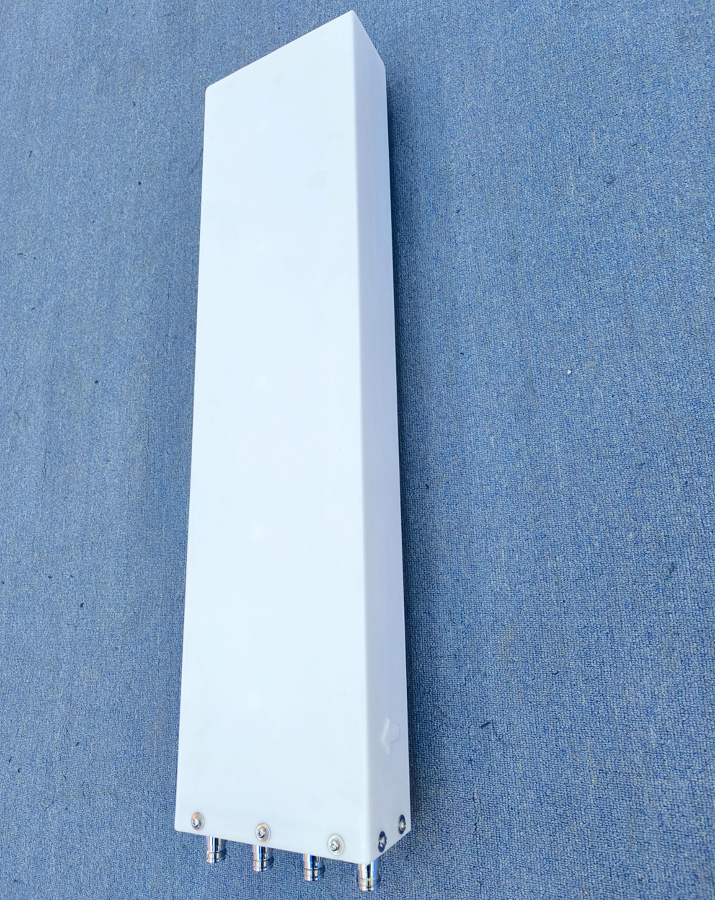

| Connector Type | 4 x 4.3-10 Female |
| Connector Location | Bottom |
| Dimensions, H×W×D (mm) | 800×200×90 |
| Packing Size, H×W×D (mm) | 950*250*160 |
| Antenna Weight (kg) | ≤4.5 |
| Packing Weight (kg) | ≤5.5 |

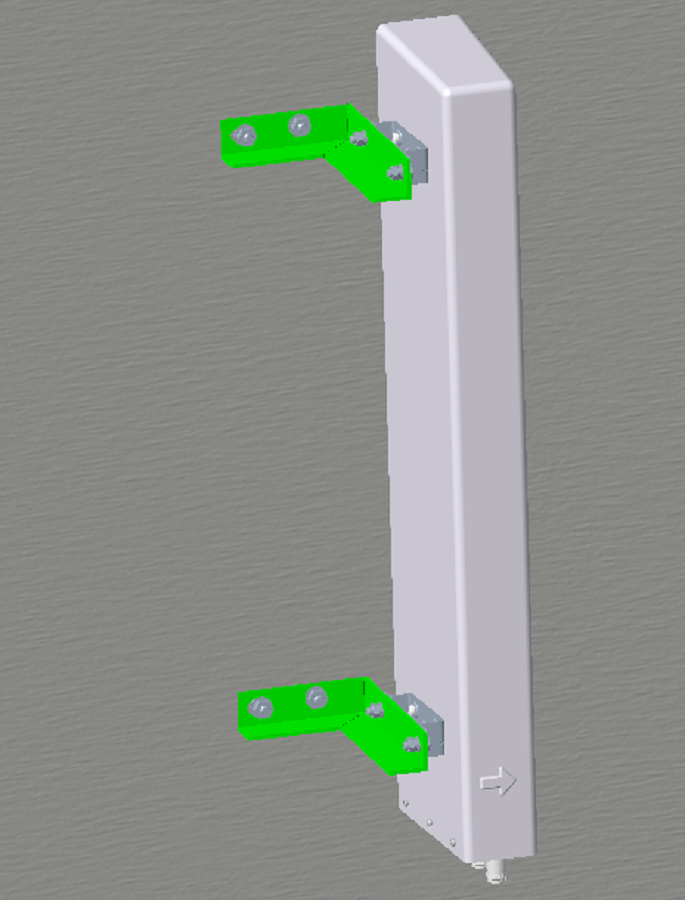

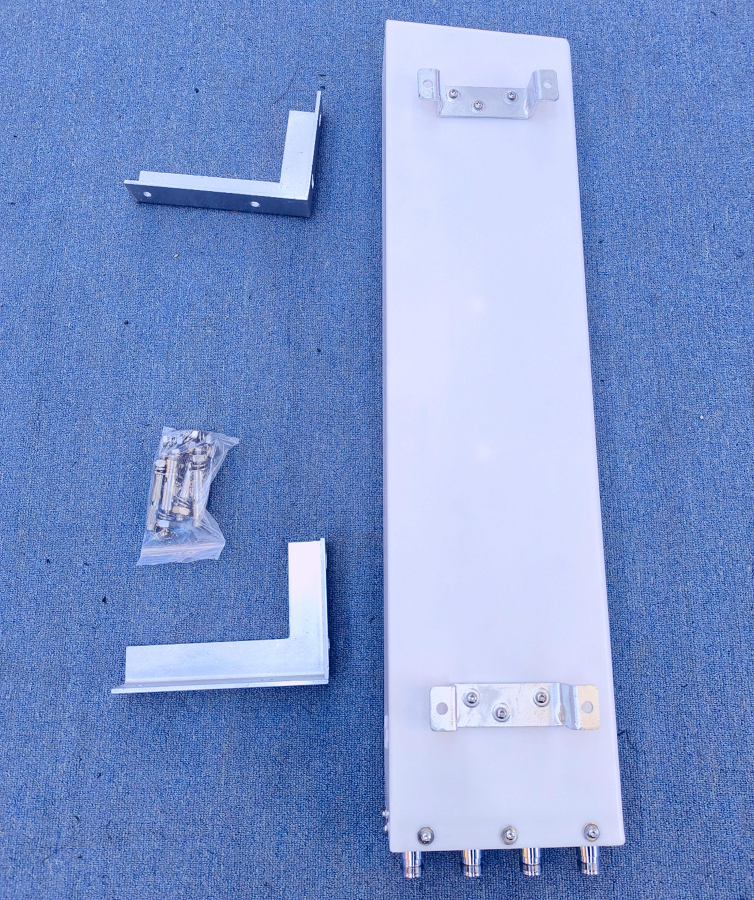

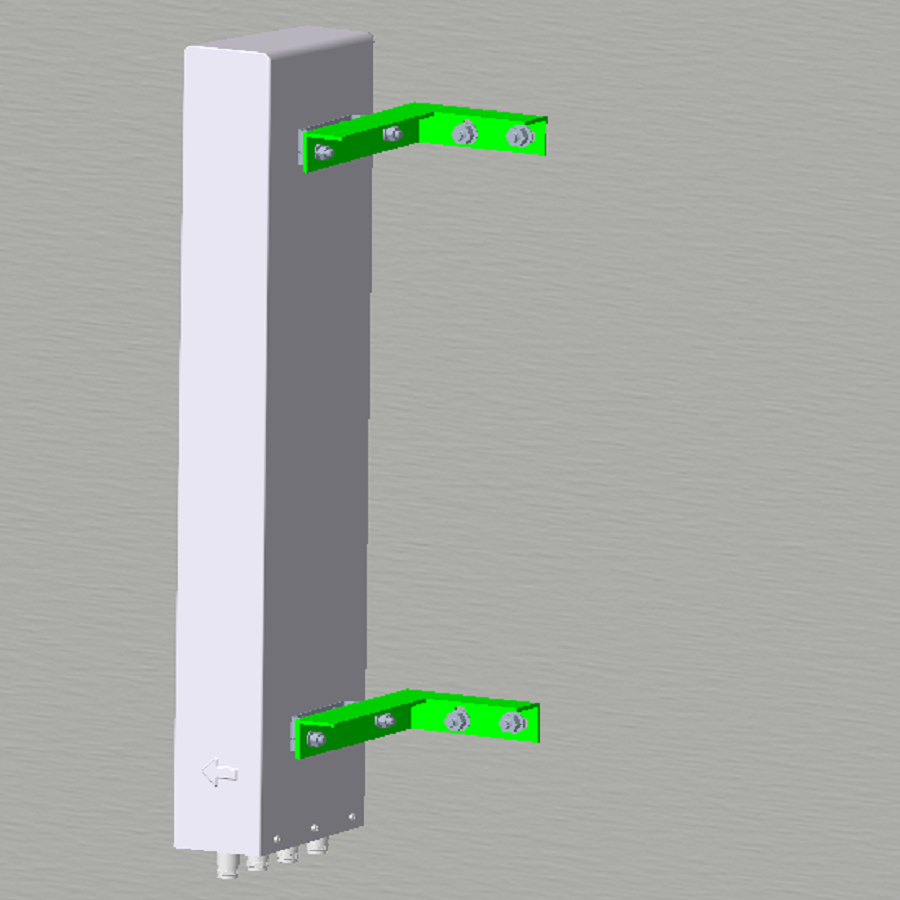

| Mounting Method | Wall-mount |
| Radome Material | ABS |
| Operating Temperature,℃ | -50～+65 |
| Max Wind Speed(km/h) | 200 |
