Large Venue Coverage Antenna

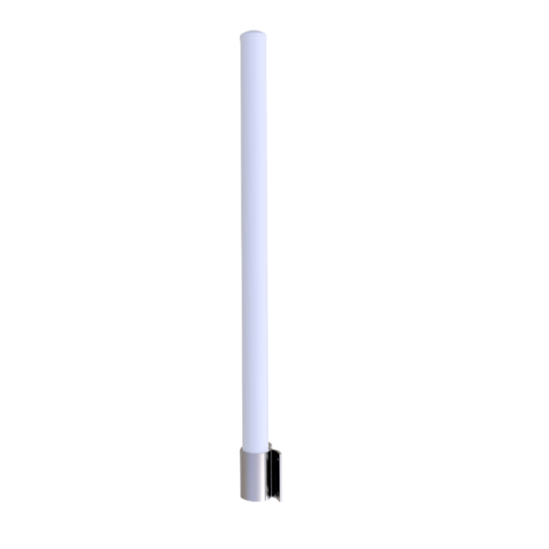

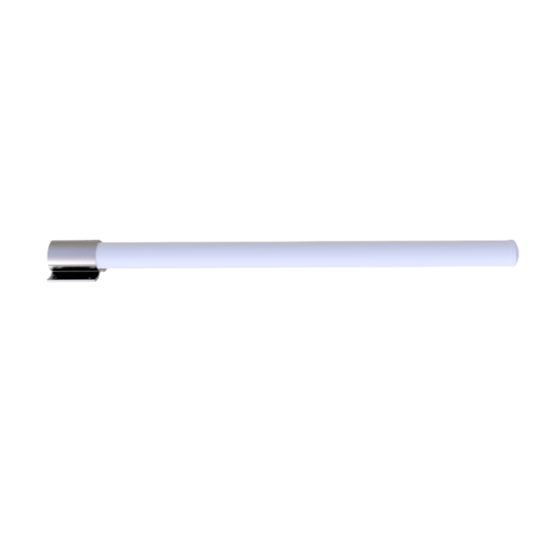

913250401-5G MIMO Omni Antenna

Share

Main Features

Outdoor Coverage Solution

Pole Mounting

High Gain

Elegant Appearance

Product Description

Electrical Specifications


Frequency Range,MHz

2515-2675

Polarization

V/H

Gain,dBi(Typical)

8

Beam Width,H,deg

360

Beam Width,V,deg

14±3

VSWR

<1.7

Isolation,dB

≤-25

Impedance,Ω

50

InputPower,MAX,Watt

80

Mechanical Specifications

Connector

4.3-10-female ×4

Dimensions L×W×H,mm

Ф71×1500

Packed Dimensions,mm

100×100×1600

Weight,kg

4

Packed Weight,kg

5.3

Mounting Method

Pole Mounting

Radome Material/Color

PVC

Operating Temperature,

-50~+65

Relative Humidity

5%-95%
